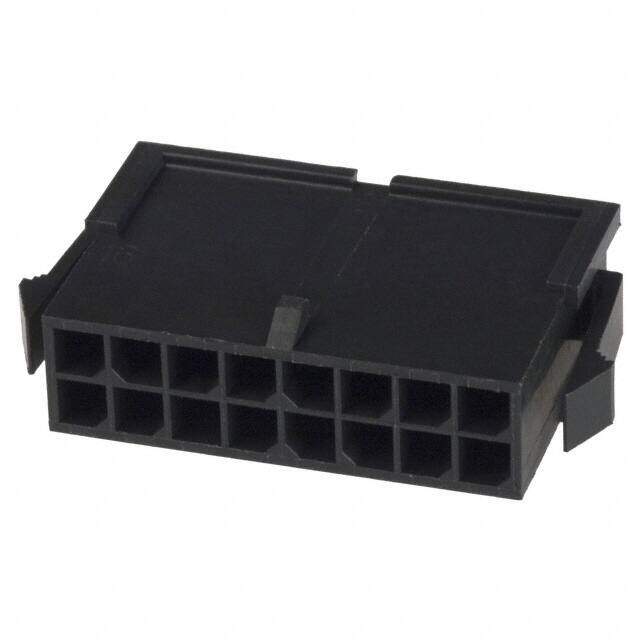

1-794615-6
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description
CONN PLUG 3MM 16POS DL M-N-L PNL
PDF
/
Buying Options
Total Price: USD $0.98
Unit Price: USD $0.9768
≥1 USD $0.9768
≥10 USD $0.91696
≥100 USD $0.882464
≥500 USD $0.874016
≥1000 USD $0.788656
≥3000 USD $0.763101
Inventory: 30
Minimum: 1
-
+
Technical Details
Technical
Gender Male
Number of Rows 2
Color Black
Min Operating Temperature -40°C
Max Operating Temperature 221°C
Number of Positions 16
Connector Type Plug
Termination Crimp
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series Micro MATE-N-LOK
Published 2008
Packaging Bulk
VDE Tested Yes
Contact Retention Without
Contact Termination Crimp
Sealable No
Wire/Cable Gauge 20 AWG
Max Voltage Rating (AC) 250V
Note Contacts Not Included
Row Spacing 0.118 (3.00mm)
Insulation Resistance 1GOhm
Contact Resistance 20mOhm
Operating Supply Voltage 250V
Housing Color Black
Contact Gender Male
Number of Contacts 16
Lead Pitch 3mm
Approval Agency CSA
Voltage - Rated AC 250V
Current Rating 5A
Depth 16.89mm
Orientation Straight
Pitch 0.118 3.00mm
Contact Type Male Pin
Fastening Type Locking Ramp
Voltage - Rated 250V
Physical
Housing Material Nylon
Material Nylon
Mounting Type Panel Mount, Snap-In
Mount Panel, Snap in
Contact Material Brass
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Factory Lead Time 16 Weeks
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
REACH SVHC Unknown
Dimensions
Panel Thickness 2.3114mm
Width 16.89mm
Length 15.85mm
Height 8.71mm
