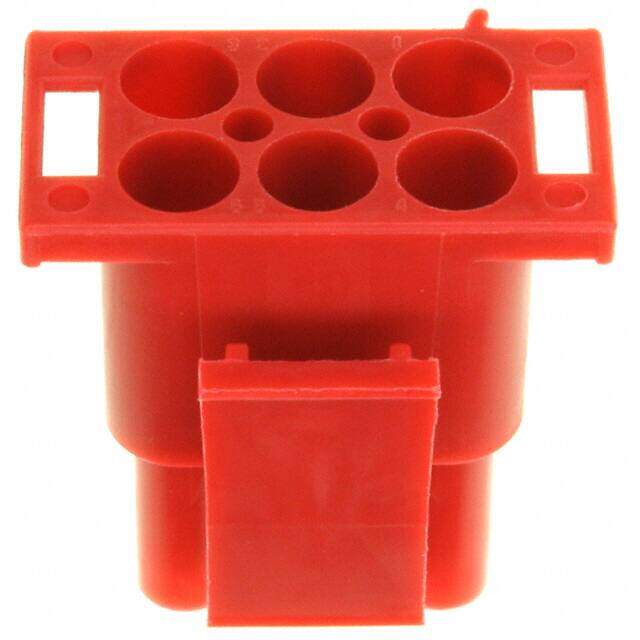

1-480704-2
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description
CONN U-MNL PLUG 6POS 94V-2 RED
PDF
/
Buying Options
Total Price: USD $0.62
Unit Price: USD $0.624109
≥1 USD $0.624109
≥10 USD $0.588778
≥100 USD $0.555455
≥500 USD $0.524013
≥1000 USD $0.494353
Inventory: 3194
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Lifecycle Status ACTIVE (Last Updated: 1 week ago)
Physical
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Shell Material POLYAMIDE
Housing Material Nylon
Technical
Packaging Bulk
Published 2007
Series Universal MATE-N-LOK
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Connector Type Plug
Max Operating Temperature 221°C
Min Operating Temperature -67°C
Color Red
Number of Rows 3
Voltage - Rated 600V
Fastening Type Latch Lock
Subcategory Headers and Edge Type Connectors
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male or Female
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 6.35mm
Orientation Straight
Depth 27.43mm
Current Rating 19A
Number of Conductors ONE
Reliability COMMERCIAL
Approval Agency CSA
Number of Contacts 6
Contact Gender Male
UL Flammability Code 94V-2
Empty Shell NO
Operating Supply Voltage 600V
Row Spacing 0.250 (6.35mm)
Note Contacts Not Included
ELV Compliant
Max Voltage Rating (AC) 600V
Insertion Force-Max 22.24 N
Sealable No
Contact Termination Crimp
Number of Signal Positions 0
Contact Retention Without
VDE Tested Yes
Dimensions
Length 27.43mm
Compliance
RoHS Status RoHS Compliant
Flammability Rating UL94 V-2
Lead Free Not Applicable
