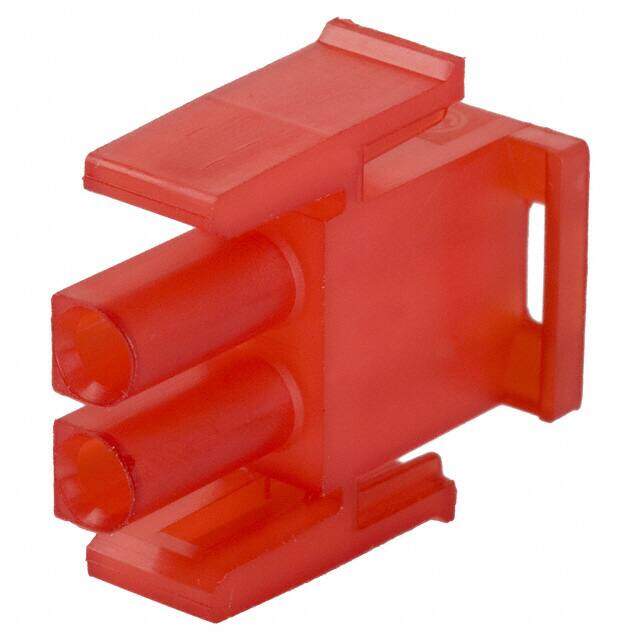

1-480698-2
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description
CONN U-MNL PLUG 2POS 94V-2 RED
PDF
/
Buying Options
Total Price: USD $0.31
Unit Price: USD $0.308
≥1 USD $0.308
≥10 USD $0.28072
≥100 USD $0.19895
≥500 USD $0.174372
≥1000 USD $0.155646
≥3000 USD $0.144839
Inventory: 9874
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Lifecycle Status ACTIVE (Last Updated: 1 day ago)
Physical
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Shell Material POLYAMIDE
Housing Material Nylon
Technical
Packaging Bulk
Published 2005
Series Universal MATE-N-LOK
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Connector Type Plug
Max Operating Temperature 221°C
Min Operating Temperature -67°C
Color Red
Number of Rows 1
Voltage - Rated 600V
Fastening Type Latch Lock
Subcategory Headers and Edge Type Connectors
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male or Female
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 6.35mm
Orientation Straight
Depth 27.43mm
Current Rating 19A
Reliability COMMERCIAL
Approval Agency CSA
Number of Contacts 2
Contact Gender Male
Empty Shell NO
Operating Supply Voltage 600V
Note Contacts Not Included
Max Voltage Rating (AC) 600V
Polarization Key POLARIZED HOUSING
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 10 AWG
Max Voltage Rating (DC) 600V
Sealable No
Contact Termination Crimp
Number of Signal Positions 0
Contact Retention Without
VDE Tested Yes
Dimensions
Length 13.97mm
Width 14.73mm
Compliance
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Flammability Rating UL94 V-2
Lead Free Lead Free
