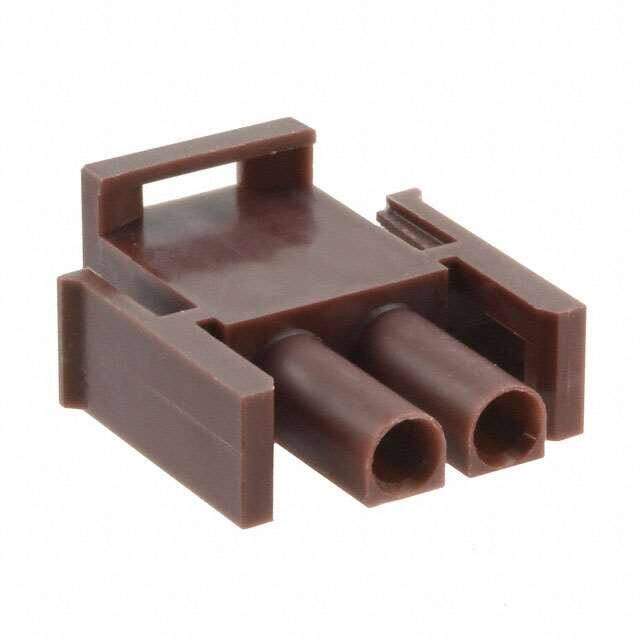

1-480698-1
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description
Conn Housing PL 2 POS 6.35mm Crimp ST Cable Mount Individual
PDF
/
Buying Options
Total Price: USD $0.31
Unit Price: USD $0.308
≥1 USD $0.308
≥10 USD $0.28072
≥100 USD $0.23408
≥500 USD $0.174372
≥1000 USD $0.155646
≥3000 USD $0.144839
Inventory: 1289
Minimum: 1
-
+
Technical Details
Physical
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Nylon
Technical
Packaging Bulk
Published 2008
Series Universal MATE-N-LOK
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Plug
Number of Positions 2
Max Operating Temperature 221°C
Min Operating Temperature -67°C
Color Brown
Number of Rows 1
Voltage - Rated 600V
Fastening Type Latch Lock
Contact Type Male or Female
Pitch 6.35mm
Orientation Straight
Depth 27.43mm
Current Rating 19A
Approval Agency CSA
Contact Gender Male
Operating Supply Voltage 600V
Note Contacts Not Included
ELV Compliant
Max Voltage Rating (AC) 600V
Sealable No
Contact Termination Crimp
Number of Power Positions 0
Contact Retention Without
VDE Tested Yes
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 5 days ago)
Factory Lead Time 12 Weeks
Compliance
RoHS Status RoHS Compliant
Flammability Rating UL94 V-2
