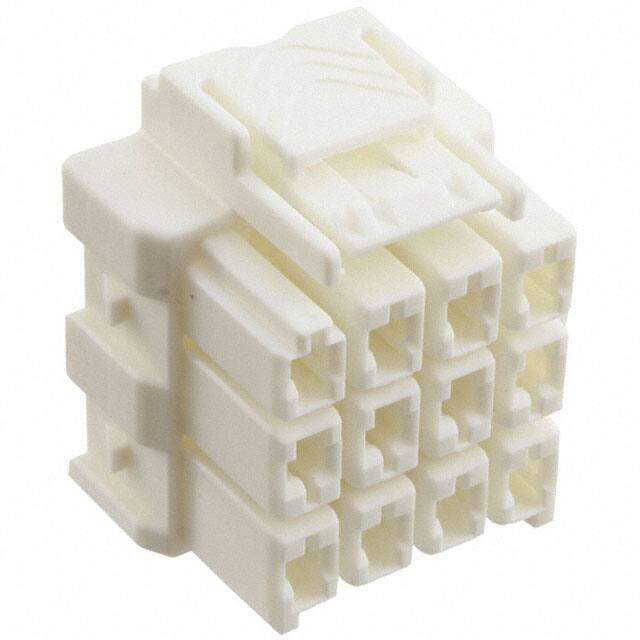

1-1971876-4
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description
CONN HOUSING PLUG 12POS 6MM
PDF
/
Buying Options
Total Price: USD $0.72
Unit Price: USD $0.7216
≥1 USD $0.7216
≥10 USD $0.6908
≥100 USD $0.568744
≥500 USD $0.447093
≥1000 USD $0.383222
≥3000 USD $0.37642
Inventory: 168
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Physical
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material PBT
Technical
Packaging Bulk
Published 2013
Series Power Triple Lock
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Crimp
Connector Type Plug
Number of Positions 12
Max Operating Temperature 221°C
Min Operating Temperature -67°C
Color Natural
Number of Rows 3
Gender Male
Voltage - Rated 600V
Fastening Type Latch Holder
Contact Type Female Blade Socket
Pitch 0.236 6.00mm
Orientation Straight
Depth 24mm
Voltage - Rated AC 600V
Approval Agency UL
Number of Contacts 12
Housing Color Natural, Orange
Operating Supply Voltage 600V
Row Spacing 0.319 (8.10mm)
Note Contacts Not Included
ELV Compliant
Max Voltage Rating (AC) 600V
Sealable No
Circuit Application Power
Contact Termination Crimp
Halogen Free Not Halogen Free
Number of Power Positions 12
Contact Retention Without
Dimensions
Length 27.7mm
Width 32.6mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
