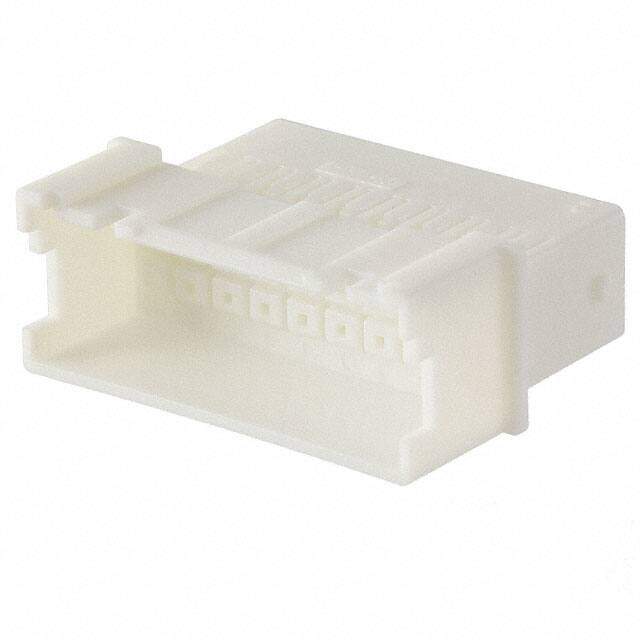

1-1969592-8
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description
CONN HSG RECEPT
PDF
/
Inventory: 7146
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Dimensions
Width 10.3124mm
Length 25.39mm
Height 19.97mm
Technical
Insulation Diameter 1.7 mm
Contact Termination Crimp
Contact Current Rating 3A
Wire/Cable Gauge 22 AWG
ELV Compliant
Note Contacts Not Included
Row Spacing 0.098 (2.50mm)
Operating Supply Voltage 250V
Housing Color White
Pitch 0.098 2.50mm
Contact Type Male Pin
Fastening Type Latch Lock
Number of Rows 2
Color White
Min Operating Temperature -67°C
Max Operating Temperature 221°C
Number of Positions 18
Connector Type Receptacle
Termination Crimp
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series Economy Power 2.5
Published 2015
Packaging Bulk
Physical
Housing Material Nylon
Mounting Type Free Hanging (In-Line)
Supply Chain
Factory Lead Time 14 Weeks
