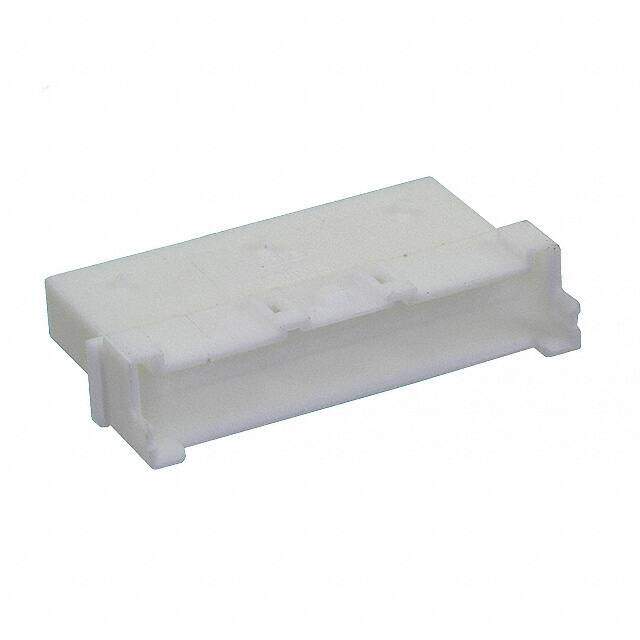

1-1969588-1
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description
Conn Housing RCP 11 POS 2.5mm ST Cable Mount Bag/Box
PDF
/
Inventory: 1526
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Dimensions
Length 30mm
Height 6.604mm
Technical
Insulation Diameter 1.7 mm
Mating Retention With
Contact Termination Crimp
Contact Current Rating 7.5A
Sealable No
Wire/Cable Gauge 22 AWG
ELV Compliant
Note Contacts Not Included
Operating Supply Voltage 250V
Housing Color Natural
Number of Contacts 11
Current Rating 7.5A
Orientation Straight
Pitch 0.098 2.50mm
Contact Type Male Pin
Fastening Type Locking Ramp
Gender Female
Number of Rows 1
Color Natural
Min Operating Temperature -25°C
Max Operating Temperature 105°C
Number of Positions 11
Connector Type Receptacle
Termination Crimp
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series Economy Power 2.5
Published 2015
Packaging Bulk
Physical
Housing Material Nylon
Mounting Type Free Hanging (In-Line)
Mount Cable
Contact Material Brass
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Factory Lead Time 23 Weeks
