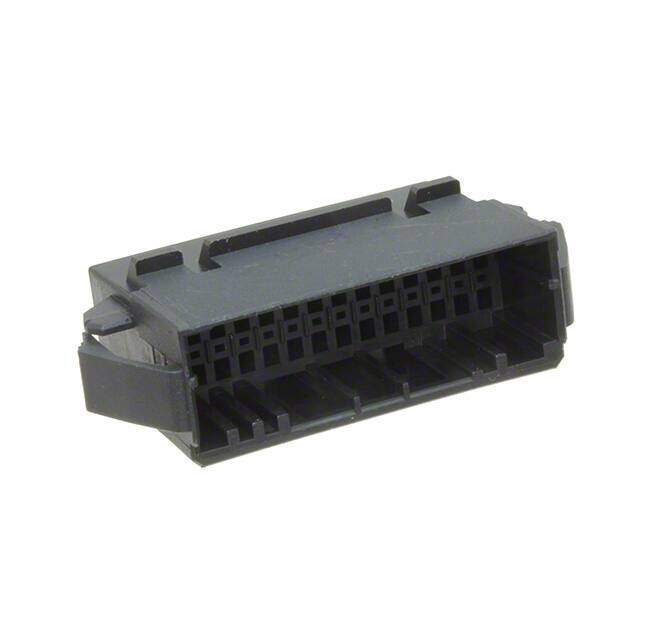

1-1903128-4
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description
Conn Housing M 28 POS 2mm ST Panel Mount Automotive Bag
PDF
/
Buying Options
Total Price: USD $3.18
Unit Price: USD $3.1768
≥1 USD $3.1768
≥10 USD $2.785983
≥100 USD $2.51167
≥500 USD $2.064207
Inventory: 560
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Lifecycle Status ACTIVE (Last Updated: 4 months ago)
Physical
Contact Plating Gold
Mounting Type Panel Mount, Snap-In
Number of Pins 28
Housing Material Polyester
Body Material Glass, Polyester
Technical
Packaging Bulk
Published 2007
Series Dynamic D-1100
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Connector Type Plug
Number of Positions 28
Max Operating Temperature 221°C
Min Operating Temperature -67°C
Color Black
Number of Rows 2
Gender Male
Contact Type Tab
Pitch 0.079 2.00mm
Orientation Straight
Depth 21mm
Approval Agency UL
Number of Contacts 28
Housing Color Black
Operating Supply Voltage 125V
Row Spacing 0.130 (3.30mm)
Note Contacts Not Included
ELV Compliant
Max Voltage Rating (AC) 125V
Wire/Cable Gauge 22 AWG
Sealable No
Circuit Application Signal
Contact Termination Crimp
Halogen Free Halogen Free
Preloaded No
VDE Tested No
Dimensions
Height 20.9804mm
Length 36.78mm
Width 13.9mm
Panel Thickness 1.9812mm
Compliance
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
