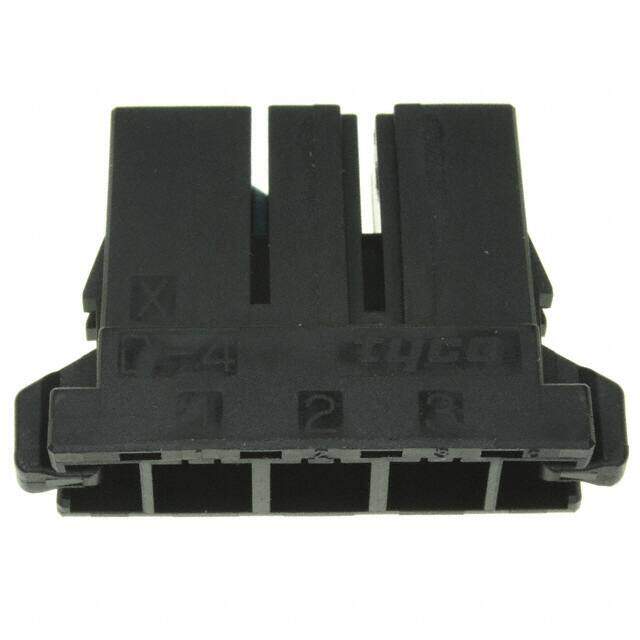

1-1747276-3
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description
CONN RECEPT 3POS D-4000 KEY-X
PDF
/
Buying Options
Total Price: USD $1.72
Unit Price: USD $1.718927
≥1 USD $1.718927
≥10 USD $1.621628
≥100 USD $1.529835
≥500 USD $1.443242
≥1000 USD $1.361554
Inventory: 7363
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Dimensions
Width 8.4836mm
Length 33.6804mm
Height 22.987mm
Technical
VDE Tested No
Halogen Free Halogen Free
Contact Termination Crimp
Circuit Application Power
Max Voltage Rating (DC) 600V
Wire/Cable Gauge 12 AWG
Dielectric Withstanding Voltage 250VAC V
Max Voltage Rating (AC) 600V
ELV Compliant
Note Contacts Not Included
Operating Supply Voltage 600V
Contact Gender Female
Approval Agency UL
Reliability COMMERCIAL
Number of Conductors ONE
Current Rating 23A
Depth 23mm
Orientation Straight
Total Number of Contacts 3
Pitch 6.35mm
Mixed Contacts YES
Contact Type Female Socket
Subcategory Headers and Edge Type Connectors
Fastening Type Latch Lock
Voltage - Rated 600V
Number of Rows 1
Color Black
Min Operating Temperature -67°C
Max Operating Temperature 221°C
Number of Positions 3
Connector Type Receptacle
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series Dynamic D-4200
Published 2005
Packaging Bulk
Physical
Housing Material Polyester
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Factory Lead Time 18 Weeks
