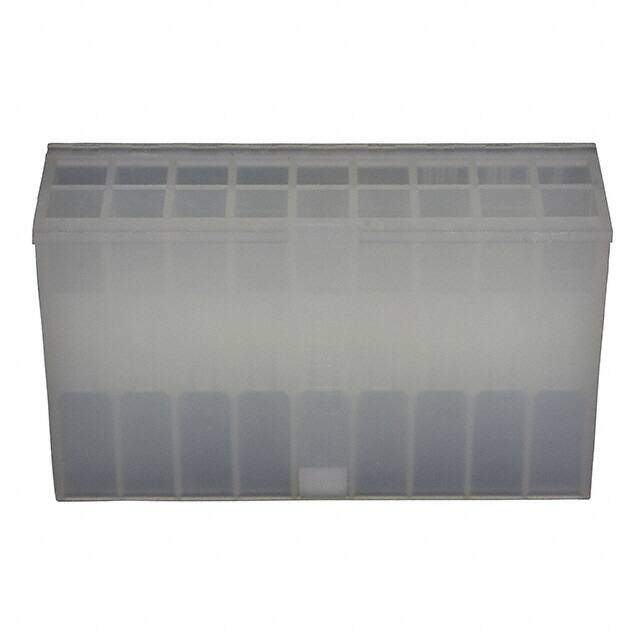

1-1586000-8
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description
CONN PLUG 18POS FREE HANGING
PDF
/
Buying Options
Total Price: USD $0.33
Unit Price: USD $0.3256
≥1 USD $0.3256
≥10 USD $0.29304
≥100 USD $0.29216
≥500 USD $0.286
≥1000 USD $0.244464
≥3000 USD $0.22
Inventory: 554
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Lifecycle Status ACTIVE (Last Updated: 2 days ago)
Physical
Mount Cable, Free Hanging, Surface Mount
Mounting Type Free Hanging (In-Line)
Housing Material Nylon
Technical
Packaging Bulk
Published 2008
Series VAL-U-LOK
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Connector Type Plug
Max Operating Temperature 221°C
Min Operating Temperature -40°C
Color Natural
Number of Rows 2
Voltage - Rated 600V
Fastening Type Locking Ramp
Subcategory Headers and Edge Type Connectors
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 0.165 4.20mm
Orientation Straight
Depth 23.8mm
Current Rating 9A
Reliability COMMERCIAL
Approval Agency CSA
Number of Contacts 18
Body Breadth 0.457 inch
Contact Gender Male
Operating Supply Voltage 600V
Rated Current (Signal) 9A
Row Spacing 0.165 (4.20mm)
Note Contacts Not Included
ELV Compliant
Max Voltage Rating (AC) 600V
Polarization Key POLARIZED HOUSING
Dielectric Withstanding Voltage 1500VAC V
Wire/Cable Type Discrete
Durability 50 Cycles
Withdrawl Force-Min .5004 N
Sealable No
Contact Termination Crimp
Insulation Diameter 3.0988 mm
Contact Retention Without
Dimensions
Height 9.6mm
Length 39mm
Width 23.8mm
Compliance
RoHS Status RoHS Compliant
Flammability Rating UL94 V-2
Lead Free Not Applicable
