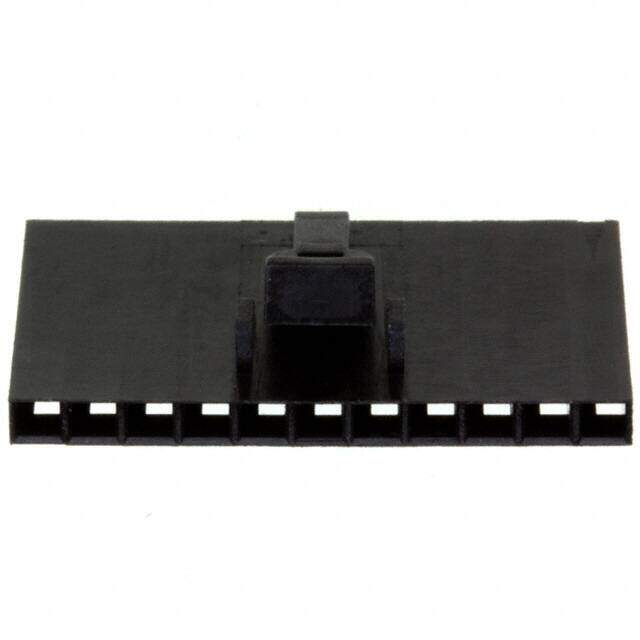

1-104257-0
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description
CONN RECPT 11POS .1" POL UNLOAD
PDF
/
Buying Options
Total Price: USD $0.87
Unit Price: USD $0.8712
≥1 USD $0.8712
≥10 USD $0.81048
≥100 USD $0.780384
≥500 USD $0.77264
≥1000 USD $0.697312
≥3000 USD $0.674714
Inventory: 2624
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Width 2.49mm
Length 27.89mm
Height 5.08mm
Technical
Mating Retention With
Contact Termination Crimp
Wire/Cable Gauge 30 AWG
Wire Gauge (Min) 22 AWG
Wire Gauge (Max) 30 AWG
ELV Compliant
Note Contacts Not Included
Row Spacing 2.54 mm
Insulation Resistance 5GOhm
Operating Supply Voltage 267V
Housing Color Black
Contact Gender Female
Number of Contacts 11
Depth 15.24mm
Orientation Straight
Pitch 0.100 2.54mm
Contact Type Female Socket
Fastening Type Latch Lock
Gender Female
Number of Rows 1
Color Black
Min Operating Temperature -65°C
Max Operating Temperature 105°C
Number of Positions 11
Connector Type Receptacle
Termination IDC
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series AMPMODU MTE
Published 2008
Packaging Bulk
Physical
Housing Material Thermoplastic
Number of Pins 11
Mounting Type Free Hanging (In-Line)
Mount Free Hanging, Surface Mount
Contact Plating Gold
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 1 week ago)
Factory Lead Time 7 Weeks
