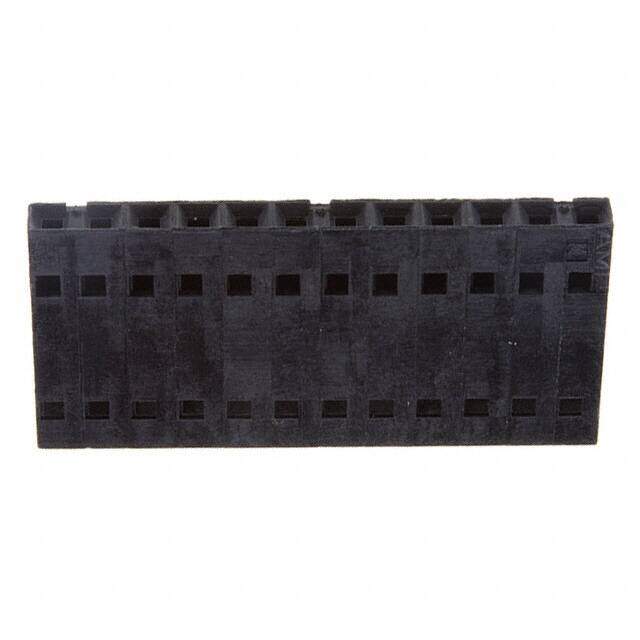

1-103688-1
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description
CONN RECEPTACLE 12POS .1" UNLOAD
PDF
/
Buying Options
Total Price: USD $3.89
Unit Price: USD $3.88881
≥1 USD $3.88881
≥200 USD $1.551848
≥500 USD $1.500645
≥1000 USD $1.474387
Inventory: 6223
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Not Applicable
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Dimensions
Length 30.4292mm
Height 2.4892mm
Technical
Mating Retention Without
Contact Termination Crimp
Contact Current Rating 3A
Wire/Cable Gauge 30 AWG
Wire Gauge (Min) 22 AWG
Wire Gauge (Max) 30 AWG
ELV Compliant
Note Contacts Not Included
Row Spacing 2.54 mm
Insulation Resistance 5GOhm
Operating Supply Voltage 600V
Housing Color Black
Contact Gender Female
Number of Contacts 12
Current Rating 3A
Depth 15.24mm
Orientation Straight
Pitch 0.100 2.54mm
Contact Type Female Socket
Gender Receptacle
Number of Rows 1
Color Black
Min Operating Temperature -65°C
Max Operating Temperature 105°C
Number of Positions 12
Connector Type Receptacle
Termination IDC
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series AMPMODU MTE
Published 2008
Packaging Bulk
Physical
Housing Material Thermoplastic
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Material Bronze
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 6 days ago)
Factory Lead Time 10 Weeks
