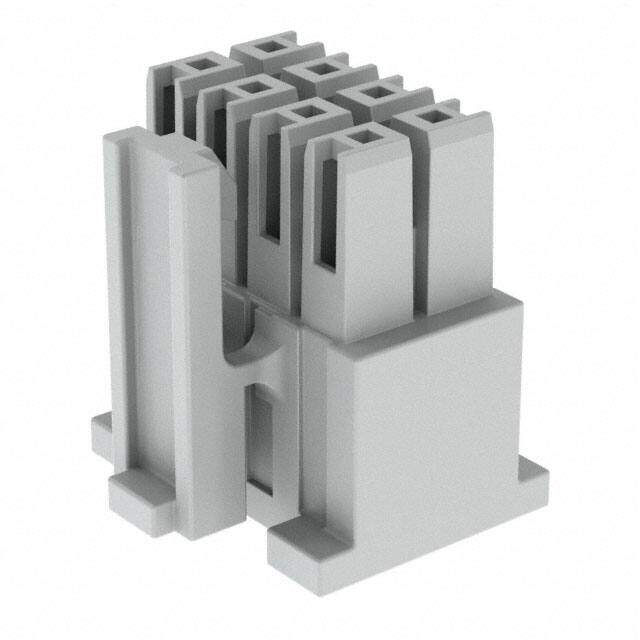

IPD1-04-D
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description
Conn Housing F 8 POS 2.54mm Crimp ST Cable Mount Loose Piece
PDF
/
Buying Options
Total Price: USD $0.98
Unit Price: USD $0.9768
≥1 USD $0.9768
≥10 USD $0.8272
≥100 USD $0.79376
≥500 USD $0.776864
≥1000 USD $0.743072
≥3000 USD $0.675488
Inventory: 1198
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 3 Weeks
Physical
Mounting Type Free Hanging (In-Line)
Shell Material ZYTEL 103FHS
Housing Material Nylon
Technical
Packaging Bulk
Published 2013
Series Mini Mate? IPD1
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Connector Type Receptacle
Number of Positions 8
Max Operating Temperature 125°C
Min Operating Temperature -55°C
Color White
Number of Rows 2
Gender Female
Additional Feature SHROUDED
Fastening Type Latch Lock
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 0.100 2.54mm
Total Number of Contacts 8
Orientation Straight
Depth 12.83mm
Mating Information MULTIPLE MATING PARTS AVAILABLE
Empty Shell NO
Row Spacing 0.100 (2.54mm)
Note Contacts Not Included
Max Voltage Rating (AC) 600V
Max Current Rating 7.4A
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 20 AWG
Max Voltage Rating (DC) 848V
Contact Termination Crimp
Dimensions
Length 11.63mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
