90143-0040
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description

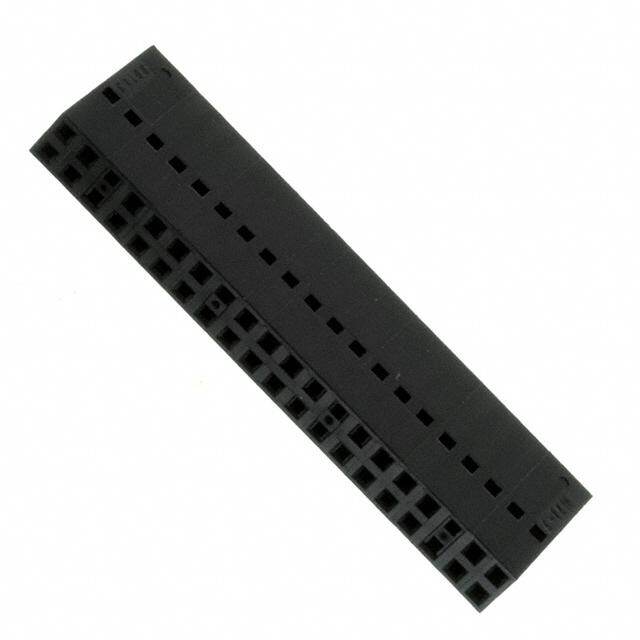

CONN HOUSNG 40POS .100" DL CRIMP
PDF
/
Buying Options
Total Price: USD $2.54
Unit Price: USD $2.538786
≥1 USD $2.538786
≥10 USD $2.395082
≥100 USD $2.259507
≥500 USD $2.131618
≥1000 USD $2.010961
Inventory: 4729
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material NOT SPECIFIED
Mount Cable, Free Hanging
Housing Material PPO
Technical
Packaging Bulk
Published 2008
Pbfree Code yes
Part Status Active
Termination Crimp
ECCN Code EAR99
Connector Type Receptacle, Socket
Max Operating Temperature 105°C
Min Operating Temperature -55°C
Color Black
Number of Rows 2
Gender Receptacle
Additional Feature C-GRID III, POLARIZED
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating NOT SPECIFIED
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 2.54mm
Orientation Straight
Current Rating 3A
Reliability COMMERCIAL
Row Spacing - Mating 2.54 mm
Number of Contacts 40
Mating Information MULTIPLE MATING PARTS AVAILABLE
Contact Gender Female
UL Flammability Code 94V-1
Body Depth 0.6 inch
Rated Current (Signal) 3A
Contact Style SQ PIN-SKT
Insulation Resistance 1000000000Ohm
Body/Shell Style PLUG
Dielectric Withstanding Voltage 1000VDC V
Contact Pattern RECTANGULAR
Glow Wire Compliant Non-compliant
Compliance
REACH SVHC Unknown
RoHS Status RoHS Compliant
Lead Free Lead Free
