90123-0106
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description

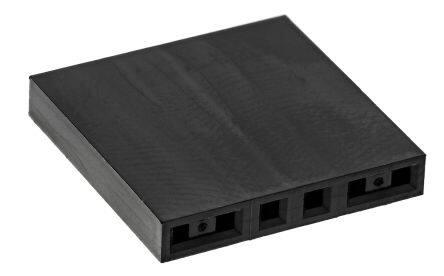

CONN HOUSING 6POS .100 SINGLE
PDF
/
Buying Options
Total Price: USD $0.39
Unit Price: USD $0.391468
≥1 USD $0.391468
≥10 USD $0.369313
≥100 USD $0.348407
≥500 USD $0.32869
≥1000 USD $0.31008
Inventory: 6783
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-1
RoHS Status RoHS Compliant
REACH SVHC Unknown
Radiation Hardening No
Dimensions
Width 3.43mm
Length 15.24mm
Technical
Glow Wire Compliant Non-compliant
Halogen Free Low Halogen
Contact Pattern RECTANGULAR
Body/Shell Style PLUG
Insulation Resistance 5GOhm
Contact Resistance 20mOhm
Contact Style SQ PIN-SKT
Rated Current (Signal) 3A
Contact Gender Female
Mating Information MULTIPLE MATING PARTS AVAILABLE
Lead Pitch 2.54mm
Reliability COMMERCIAL
Voltage - Rated AC 350V
Current Rating 3A
Depth 15.24mm
Orientation Straight
Total Number of Contacts 6
Pitch 2.54mm
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Subcategory Headers and Edge Type Connectors
Gender Receptacle
Number of Rows 1
Color Black
Min Operating Temperature -55°C
Max Operating Temperature 105°C
Number of Positions 6
Connector Type Receptacle, Socket
ECCN Code EAR99
Termination Crimp
Part Status Active
Pbfree Code yes
Published 1997
Physical
Housing Material PPO
Mount Cable, Free Hanging
Supply Chain
Factory Lead Time 9 Weeks
