5016464000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description

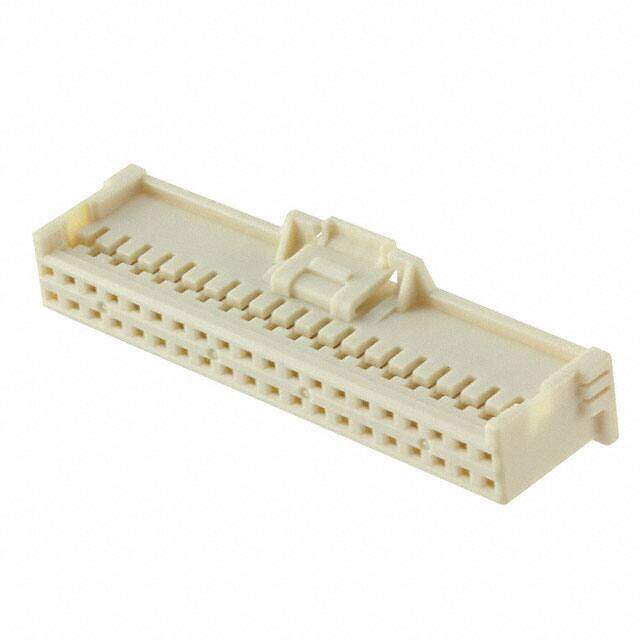

Headers & Wire Housings IGRID 40P RECPT HSG DUL ROW POS LOK
PDF
/
Buying Options
Total Price: USD $1.04
Unit Price: USD $1.0384
≥1 USD $1.0384
≥10 USD $0.88792
≥100 USD $0.73348
≥500 USD $0.679694
Inventory: 3875
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Insulation Diameter-Min 0.033 inch
Contact Termination Crimp
Dielectric Withstanding Voltage 1000VAC V
Polarization Key POLARIZED HOUSING
Note Contacts Not Included
Row Spacing 0.079 (2.00mm)
Insulation Resistance 1000000000Ohm
Rated Current (Signal) 2A
Body Depth 0.435 inch
Operating Temperature (Max) 85°C
Body Length or Diameter 1.654 inch
Reliability COMMERCIAL
Reference Standard UL
Total Number of Contacts 40
Pitch 0.079 2.00mm
Contact Type Female Socket
Contact Finish - Mating NOT SPECIFIED
Subcategory Headers and Edge Type Connectors
Fastening Type Latch Lock
Number of Rows 2
Color Natural
Number of Positions 40
Connector Type Receptacle
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series iGrid 501646
Published 2005
Packaging Bulk
Physical
Mounting Option 1 LOCKING
Insulation Material NYLON
Mounting Type Free Hanging (In-Line)
Contact Material NOT SPECIFIED
Supply Chain
Factory Lead Time 8 Weeks
