5016462600
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description

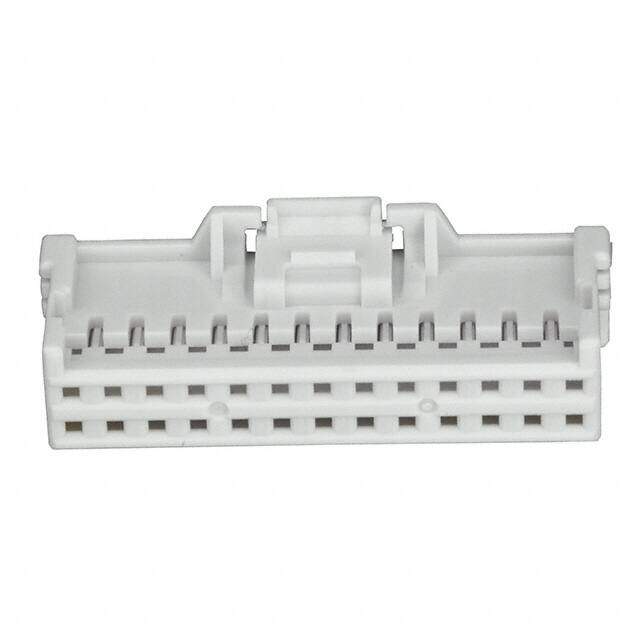

CONN RECEPT 26POS 2MM
PDF
/
Buying Options
Total Price: USD $0.85
Unit Price: USD $0.8536
≥1 USD $0.8536
≥10 USD $0.7084
≥100 USD $0.590172
≥500 USD $0.472129
≥1000 USD $0.427874
Inventory: 1449
Minimum: 1
-
+
Technical Details
Technical
Total Number of Contacts 26
Pitch 0.079 2.00mm
Contact Type Female Socket
Contact Finish - Mating NOT SPECIFIED
Subcategory Headers and Edge Type Connectors
Fastening Type Latch Lock
HTS Code 8536.69.40.40
Number of Rows 2
Color Natural
Number of Positions 26
Connector Type Receptacle
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series iGrid 501646
Published 2005
Packaging Bulk
Insulation Diameter-Min 0.033 inch
Contact Termination Crimp
Dielectric Withstanding Voltage 1000VAC V
Polarization Key POLARIZED HOUSING
Note Contacts Not Included
Row Spacing 0.079 (2.00mm)
Insulation Resistance 1000000000Ohm
Rated Current (Signal) 2A
Body Depth 0.435 inch
Operating Temperature (Max) 85°C
Reliability COMMERCIAL
Reference Standard UL
Physical
Mounting Option 1 LOCKING
Insulation Material NYLON
Mounting Type Free Hanging (In-Line)
Contact Material NOT SPECIFIED
Supply Chain
Factory Lead Time 12 Weeks
Compliance
RoHS Status ROHS3 Compliant
