50-37-5063
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description

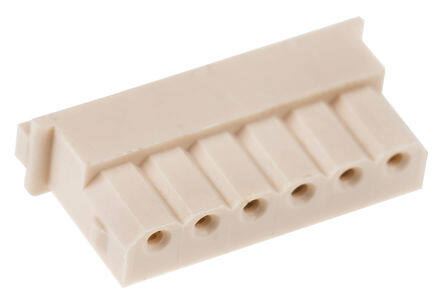

CONN HOUSING 6POS 2.5MM SHROUD
PDF
/
Buying Options
Total Price: USD $0.55
Unit Price: USD $0.5529
≥1 USD $0.5529
≥10 USD $0.4541
≥100 USD $0.43985
≥500 USD $0.4256
≥1000 USD $0.41135
Inventory: 1518
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mount Cable, Free Hanging, PCB
Material Nylon, Polyamide
Housing Material Nylon
Technical
Packaging Bulk
Published 2006
Pbfree Code yes
Part Status Active
Termination Crimp
ECCN Code EAR99
Connector Type Power, Receptacle, Rectangular, Socket
Max Operating Temperature 105°C
Min Operating Temperature -40°C
Number of Rows 1
Gender Receptacle
Additional Feature POLARIZED
Fastening Type Ramp
Voltage - Rated DC 250V
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 2.5mm
Total Number of Contacts 6
Orientation Straight
Depth 3.9mm
Current Rating 3A
Voltage - Rated AC 250V
Shrouding Yes
Mating Information MULTIPLE MATING PARTS AVAILABLE
Contact Gender Female
UL Flammability Code 94V-0
Insulation Resistance 1GOhm
Number of Poles 6
Halogen Free Low Halogen
Voltage - Test 1kV
Glow Wire Compliant Non-compliant
Voltage - Working 250V
Dimensions
Length 17.4mm
Width 8mm
Compliance
Radiation Hardening No
REACH SVHC Unknown
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
