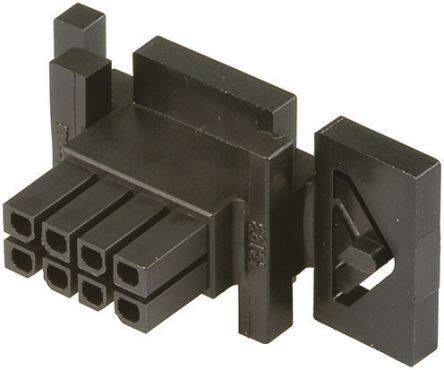

44133-2400
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description
CONN RECEPT 24POS 3MM DUAL ROW
PDF
/
Buying Options
Total Price: USD $1.61
Unit Price: USD $1.6112
≥1 USD $1.6112
≥10 USD $1.3224
≥100 USD $1.2806
≥500 USD $1.23975
≥1000 USD $1.19795
Inventory: 5685
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mount Cable, Panel
Housing Material Polyester
Technical
Packaging Bulk
Published 2006
Pbfree Code yes
Part Status Active
Termination Crimp
Connector Type Receptacle, Socket
Max Operating Temperature 105°C
Min Operating Temperature -40°C
Color Black
Number of Rows 2
Gender Receptacle
Additional Feature MICRO-FIT 3.0, BMI, PANEL MOUNTABLE
Subcategory Headers and Edge Type Connectors
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 3mm
Orientation Straight
Depth 16mm
Current Rating 5A
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Row Spacing - Mating 2.9972 mm
Number of Contacts 24
Mating Information MULTIPLE MATING PARTS AVAILABLE
Body Breadth 0.6 inch
Contact Gender Female
UL Flammability Code 94V-0
Operating Supply Voltage 250V
Contact Resistance 10mOhm
Insulation Resistance 1000000000Ohm
Max Voltage Rating (AC) 250V
Max Voltage Rating (DC) 176.25kV
Insertion Force-Max 11.5648 N
Withdrawl Force-Min 3.5584 N
Glow Wire Compliant Non-compliant
Dimensions
Length 54.9mm
Width 15.2mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Lead Free Contains Lead
