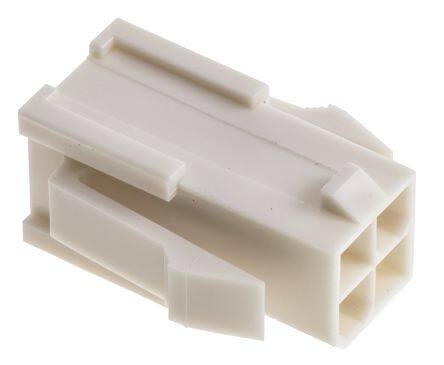

39-01-2046 image
Favorite
39-01-2046 image
Favorite

39-01-2046

Molex
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description CONN PLUG 4POS PANEL MOUNT
PDF
/
Buying Options
Total Price: USD $0.25
Unit Price: USD $0.249536
≥1 USD $0.249536
≥10 USD $0.235418
≥100 USD $0.222086
≥500 USD $0.209518
≥1000 USD $0.197664
Inventory: 1109
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 8 Weeks

Physical

Mount Panel, Snap in
Housing Material Nylon

Technical

Packaging Bulk
Published 2002
Pbfree Code yes
Part Status Active
Termination Crimp
ECCN Code EAR99
Connector Type Male Pin, Pin, Plug
Number of Positions 4
Max Operating Temperature 105°C
Min Operating Temperature -40°C
Color Natural
Number of Rows 2
Voltage - Rated 600V
Fastening Type Ramp
Subcategory Headers and Edge Type Connectors
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 4.2mm
Total Number of Contacts 4
Orientation Straight
Depth 23.9mm
Current Rating 13A
Number of Conductors ONE
Reference Standard UL,CSA,TUV
Reliability COMMERCIAL
Approval Agency CSA, TUV, UL
Row Spacing - Mating 4.191 mm
Mating Information MULTIPLE MATING PARTS AVAILABLE
Contact Gender Male
Empty Shell YES
Contact Style SQ PIN-SKT
Contact Resistance 10mOhm
Insulation Resistance 1000000000Ohm
Max Voltage Rating (AC) 600V
Durability 30 Cycles
Max Voltage Rating (DC) 600.6kV
Halogen Free Low Halogen
Glow Wire Compliant Non-compliant

Dimensions

Height 11.6mm
Length 15mm
Width 11.6mm

Compliance

Radiation Hardening No
REACH SVHC Unknown
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
