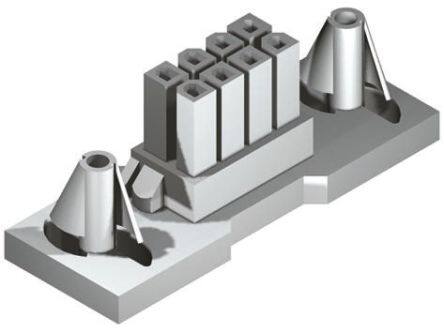

15-06-0080
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description
CONN RECEPT 8POS W/PANEL MOUNT
PDF
/
Buying Options
Total Price: USD $6.05
Unit Price: USD $6.04865
≥1 USD $6.04865
≥10 USD $4.96375
≥100 USD $4.80795
≥500 USD $4.6531
≥1000 USD $4.49825
Inventory: 1173
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Material Brass
Contact Plating Tin
Mount Panel
Shell Material POLYAMIDE
Housing Material Nylon
Technical
Packaging Bulk
Published 2009
Pbfree Code yes
Part Status Active
Termination Crimp
Connector Type Receptacle, Socket
Number of Positions 8
Max Operating Temperature 105°C
Min Operating Temperature -40°C
Color Natural, White
Number of Rows 2
Gender Receptacle
Additional Feature POLARIZED
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 4.2mm
Total Number of Contacts 8
Orientation Straight
Depth 19.6mm
Current Rating 13A
Row Spacing - Mating 4.191 mm
Contact Gender Female
Housing Color Natural
Empty Shell NO
Max Voltage Rating (AC) 600V
Max Voltage Rating (DC) 600.6kV
Halogen Free Low Halogen
Current Rating (Max) 12A
Glow Wire Compliant Non-compliant
Dimensions
Height 17.3mm
Length 48.6mm
Width 17.3mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
