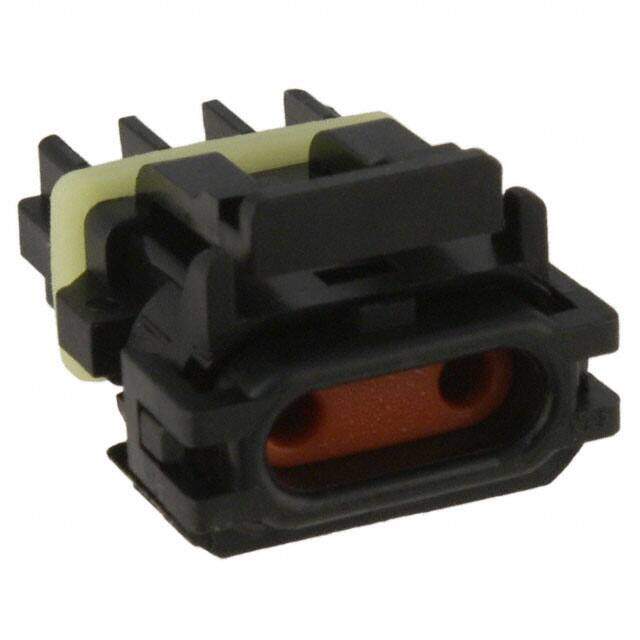

0521170241
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description
CONN RECEPT HOUSING 2POS 2.5MM
PDF
/
Buying Options
Total Price: USD $2.8
Unit Price: USD $2.7984
≥1 USD $2.7984
≥10 USD $2.4596
≥100 USD $1.95653
≥500 USD $1.56523
≥1000 USD $1.453426
Inventory: 1717
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Contact Termination Crimp
Withdrawl Force-Min 53.376 N
Dielectric Withstanding Voltage 700VAC V
Polarization Key POLARIZED HOUSING
Note Contacts Not Included
Rated Current (Signal) 3A
Operating Temperature (Min) -40°C
Mating Information MULTIPLE MATING PARTS AVAILABLE
Reliability COMMERCIAL
Total Number of Contacts 2
Pitch 0.197 5.00mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating NOT SPECIFIED
Subcategory Headers and Edge Type Connectors
Fastening Type Locking Ramp
Number of Rows 1
Color Black
Number of Positions 2
Connector Type Receptacle
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Waterproof (Mated, IP67)
Series Mizu-P25 Waterproof, Splash Proof 52117
Packaging Bulk
Physical
Insulation Material POLYESTER
Mounting Type Free Hanging (In-Line)
Contact Material NOT SPECIFIED
Supply Chain
Factory Lead Time 14 Weeks
