0521160340
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description

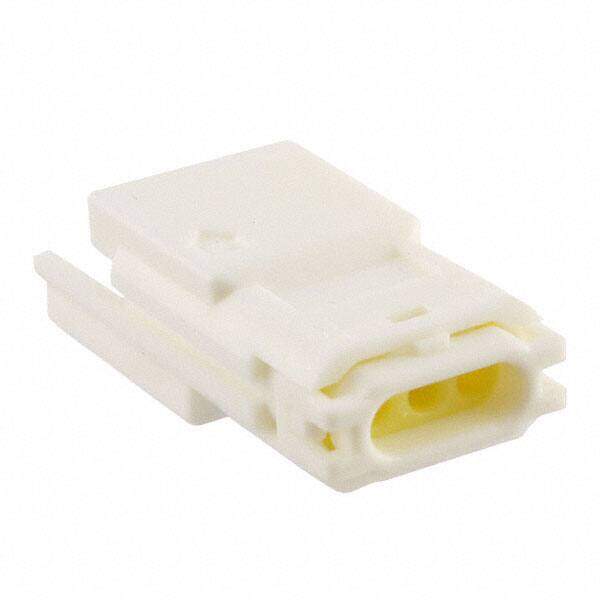

CONN PLUG 3POS 2.50MM WTW WHITE
PDF
/
Buying Options
Total Price: USD $2.49
Unit Price: USD $2.4904
≥1 USD $2.4904
≥10 USD $2.18856
≥100 USD $1.74108
≥500 USD $1.442637
≥1000 USD $1.293398
Inventory: 563
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Wire Size (Max) 20 AWG
Wire Size (Min) 20 AWG
Contact Termination Crimp
Dielectric Withstanding Voltage 700VAC V
Polarization Key POLARIZED HOUSING
Note Contacts Not Included
Insulation Resistance 250000000Ohm
Rated Current (Signal) 3A
Operating Temperature (Min) -40°C
Mating Information MULTIPLE MATING PARTS AVAILABLE
Reliability COMMERCIAL
Total Number of Contacts 3
Pitch 0.098 2.50mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating NOT SPECIFIED
Subcategory Headers and Edge Type Connectors
Fastening Type Detent Lock
Number of Rows 1
Color White
Number of Positions 3
Connector Type Plug
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Waterproof (Mated, IP67)
Series Mizu-P25 Waterproof, Splash Proof 52116
Packaging Tray
Physical
Mounting Option 1 LOCKING
Insulation Material POLYESTER
Mounting Type Free Hanging (In-Line)
Contact Material NOT SPECIFIED
Supply Chain
Factory Lead Time 9 Weeks
