03-09-1154
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description

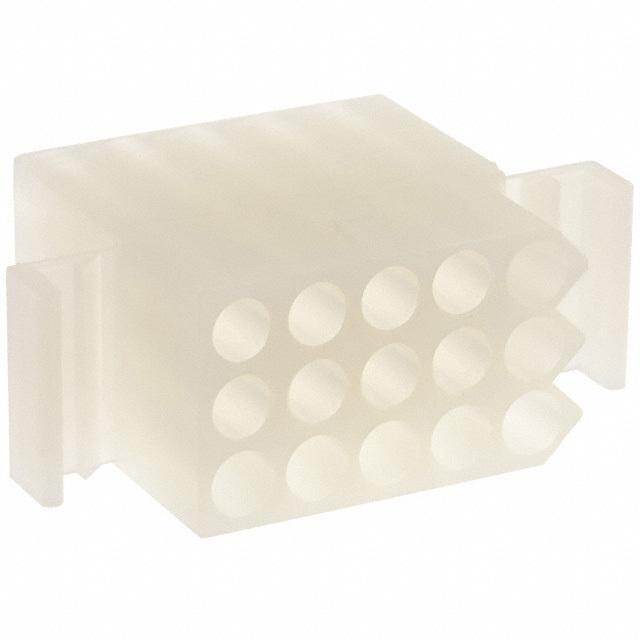

2.36mm Diameter Standard .093" Pin and Socket Receptacle Housing, 15 Circuits, 3 Rows
PDF
/
Inventory: 9021
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Mating Contact Row Spacing 0.198 inch
Contact Pattern RECTANGULAR
Polarization Key POLARIZED HOUSING
Termination Type SOLDER
Body/Shell Style RECEPTACLE
Empty Shell YES
UL Flammability Code 94V-2
Mating Information MULTIPLE MATING PARTS AVAILABLE
Number of Contacts 15
Reliability COMMERCIAL
Reference Standard UL, CSA
Current Rating 9.5A
Depth 25.78mm
Orientation Straight
Pitch 5.03mm
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating NOT SPECIFIED
Subcategory Headers and Edge Type Connectors
Gender Female
Number of Rows 3
Color Natural
Min Operating Temperature -40°C
Max Operating Temperature 105°C
Connector Type RECTANGULAR POWER CONNECTOR
ECCN Code EAR99
Pbfree Code yes
Published 2009
Packaging Bulk
Physical
Mounting Option 1 LOCKING MECH
Housing Material Nylon
Shell Material POLYAMIDE66
Mounting Type PANEL
Contact Material NOT SPECIFIED
Supply Chain
Factory Lead Time 5 Weeks
