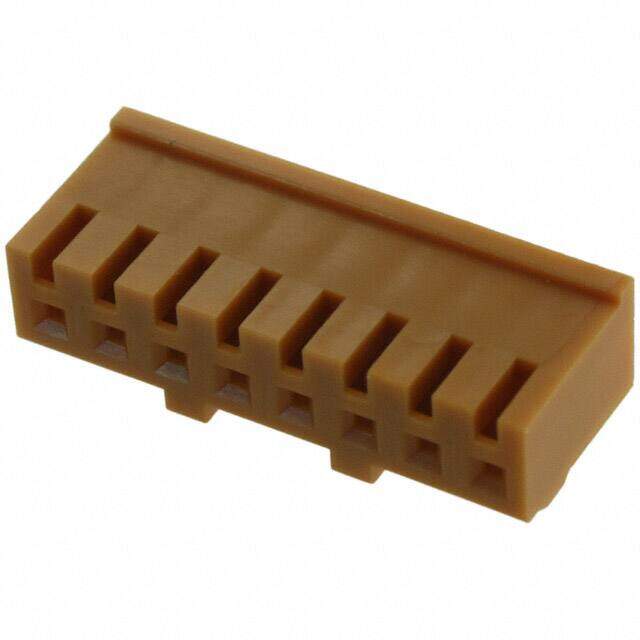

IL-G-8S-S3C2-SA
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description
CONN RCPT HOUSING 8POS 2.5MM
PDF
/
Buying Options
Total Price: USD $0.23
Unit Price: USD $0.2288
≥1 USD $0.2288
≥10 USD $0.19624
≥100 USD $0.17248
≥500 USD $0.158576
≥1000 USD $0.152416
≥3000 USD $0.136858
Inventory: 2673
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Technical
Contact Termination Crimp
Wire Gauge (Min) 28 AWG
Wire Gauge (Max) 22 AWG
Note Contacts Not Included
Insulation Resistance 100MOhm
Contact Gender Female
Current Rating 3A
Pitch 0.098 2.50mm
Contact Type Female Socket
Fastening Type Friction Lock
Number of Rows 1
Color Brown
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Number of Positions 8
Connector Type Receptacle
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series IL-G
Published 2008
Packaging Bulk
Physical
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Supply Chain
Factory Lead Time 14 Weeks
