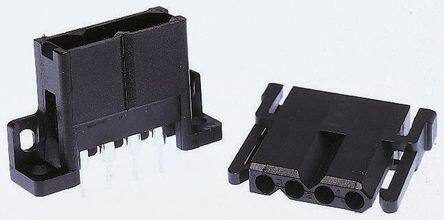

192990-0970
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description
ITT CANNON TST04PF00 PLUG, FREE, 4WAY
PDF
/
Inventory: 1362
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Insulator Color BLACK
Contact Pattern RECTANGULAR
Polarization Key POLARIZED HOUSING
Termination Type CRIMP
Body/Shell Style PLUG
Mating Contact Pitch 0.2 inch
Insulation Resistance 5000000000Ohm
Contact Style RND PIN-SKT
Rated Current (Signal) 10A
Body Depth 1 inch
UL Flammability Code 94V-0
Operating Temperature (Min) -40°C
Contact Gender FEMALE
Body Breadth 0.236 inch
Mating Information MULTIPLE MATING PARTS AVAILABLE
Operating Temperature (Max) 105°C
Reliability COMMERCIAL
Reference Standard UL, CSA
Terminal Pitch 5.08mm
Total Number of Contacts 4
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating NOT SPECIFIED
Subcategory Headers and Edge Type Connectors
Additional Feature LOW PROFILE
Number of Rows 1
Connector Type BOARD CONNECTOR
Part Status Active
Pbfree Code yes
Published 1998
Physical
Mounting Option 2 LOCKING
Mounting Style STRAIGHT
Mounting Option 1 LATCH
Insulation Material NYLON
Mounting Type CABLE
Contact Material NOT SPECIFIED
Supply Chain
Factory Lead Time 12 Weeks
