192990-0960
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description

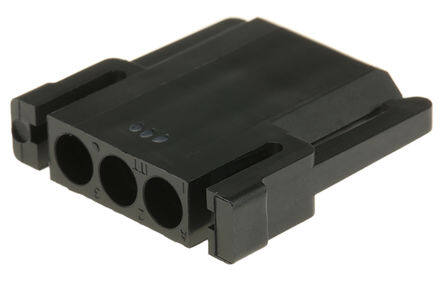

ITT CANNON TST03PF00 CONNECTOR HOUSING, PLUG, 3 WAY, NYLON
PDF
/
Inventory: 2395
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
Published 1998
Pbfree Code yes
Part Status Active
Connector Type BOARD CONNECTOR
Color Black
Number of Rows 1
Additional Feature LOW PROFILE
Subcategory Headers and Edge Type Connectors
Voltage - Rated DC 250V
Contact Finish - Mating NOT SPECIFIED
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Terminal Pitch 5.08mm
Reference Standard UL, CSA
Reliability COMMERCIAL
Number of Contacts 3
Operating Temperature (Max) 105°C
Mating Information MULTIPLE MATING PARTS AVAILABLE
Contact Gender FEMALE
Operating Temperature (Min) -40°C
UL Flammability Code 94V-0
Body Depth 1 inch
Rated Current (Signal) 10A
Contact Style RND PIN-SKT
Insulation Resistance 5GOhm
Mating Contact Pitch 0.2 inch
Body/Shell Style PLUG
Termination Type CRIMP
Packaging Bulk
Polarization Key POLARIZED HOUSING
Contact Pattern RECTANGULAR
Physical
Mounting Option 2 LOCKING
Mounting Style STRAIGHT
Mounting Option 1 LATCH
Insulation Material Nylon
Mounting Type CABLE
Contact Material NOT SPECIFIED
Supply Chain
Factory Lead Time 12 Weeks
Compliance
RoHS Status RoHS Compliant
