192923-5950
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description

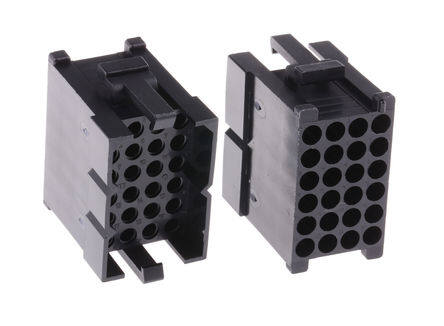

ITT CANNON TST24PA00 PLUG, FREE, 24WAY
PDF
/
Buying Options
Total Price: USD $9.98
Unit Price: USD $9.979352
≥1 USD $9.979352
≥10 USD $9.414482
≥100 USD $8.881583
≥500 USD $8.378847
≥1000 USD $7.904585
Inventory: 6140
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mounting Type CABLE
Housing Material Nylon
Mounting Option 1 LATCH
Mounting Option 2 LOCKING
Technical
Packaging Box
Published 2012
Pbfree Code yes
Part Status Active
Connector Type RECTANGULAR CONNECTOR
Max Operating Temperature 105°C
Min Operating Temperature -55°C
Number of Rows 4
Gender Male
Subcategory Headers and Edge Type Connectors
Voltage - Rated DC 250V
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Option GENERAL PURPOSE
Orientation Straight
Depth 33mm
Reference Standard UL, CSA
Reliability COMMERCIAL
Number of Contacts 24
Body Breadth 1.653 inch
Housing Color Black
Contact Style RND PIN-SKT
Insulation Resistance 5GOhm
Mating Contact Pitch 0.2 inch
Body/Shell Style PLUG
Max Voltage Rating (AC) 250V
Termination Type CRIMP
Max Current Rating 13A
Polarization Key POLARIZED HOUSING
Contact Pattern RECTANGULAR
Mating Contact Row Spacing 0.2 inch
Dimensions
Length 42mm
Width 24mm
Compliance
Radiation Hardening No
REACH SVHC Unknown
RoHS Status RoHS Compliant
Lead Free Lead Free
