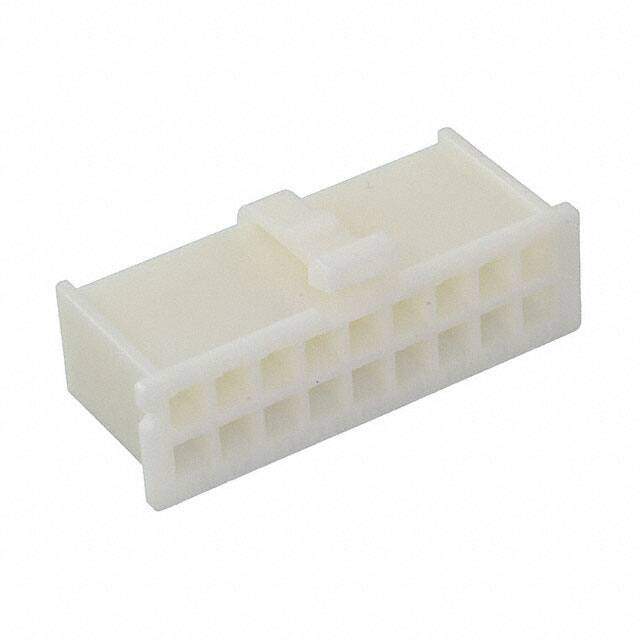

MDF6-18DS-3.5C
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description
Power to the Board 18P DBL ROW SOCKET CRIMPING SOCKET
PDF
/
Buying Options
Total Price: USD $0.53
Unit Price: USD $0.52553
≥1 USD $0.52553
≥10 USD $0.495785
≥100 USD $0.467719
≥500 USD $0.441245
≥1000 USD $0.41627
Inventory: 998
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Contact Termination Crimp
Note Contacts Not Included
Row Spacing 0.197 (5.00mm)
Insulation Resistance 1000000000Ohm
Contact Resistance 30mOhm
UL Flammability Code 94V-0
Operating Temperature (Min) -30°C
Mating Information MULTIPLE MATING PARTS AVAILABLE
Operating Temperature (Max) 85°C
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Reach Compliance Code unknown
Total Number of Contacts 18
Pitch 0.138 3.50mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating TIN
Subcategory Headers and Edge Type Connectors
Fastening Type Latch Lock
Number of Rows 2
Color White
Number of Positions 18
Connector Type Socket
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series MDF6
Packaging Bulk
Physical
Insulation Material POLYAMIDE
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Material COPPER ALLOY
Supply Chain
Factory Lead Time 10 Weeks
