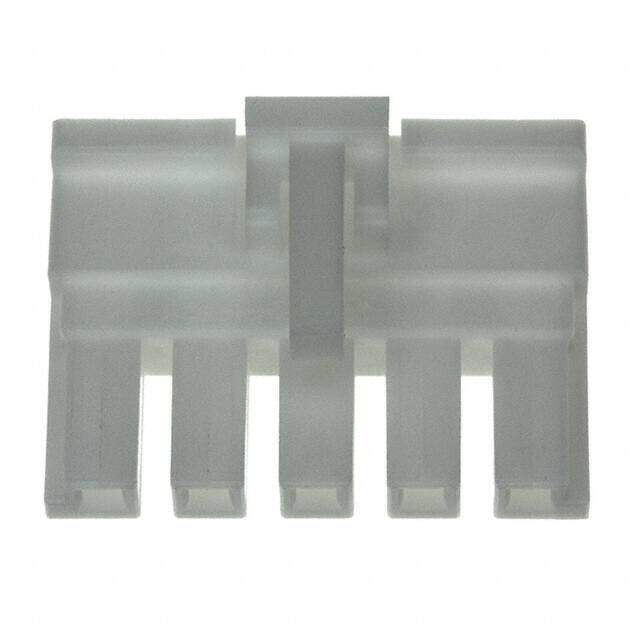

DF5A-5S-5C
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description
CONN RECEPT HOUSING 5POS 5MM
PDF
/
Buying Options
Total Price: USD $0.3
Unit Price: USD $0.298046
≥1 USD $0.298046
≥10 USD $0.28118
≥100 USD $0.265257
≥500 USD $0.250243
≥1000 USD $0.236087
Inventory: 4625
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Contact Material COPPER ALLOY
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide
Technical
Packaging Bulk
Published 2008
Series DF5
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Connector Type Receptacle
Number of Positions 5
Color White
Number of Rows 1
Fastening Type Latch Holder
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating TIN
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 0.197 5.00mm
Total Number of Contacts 5
Reach Compliance Code unknown
Current Rating 8A
Reference Standard UL
Voltage - Rated AC 500V
Reliability COMMERCIAL
Mating Information MULTIPLE MATING PARTS AVAILABLE
Contact Gender Female
UL Flammability Code 94V-0
Rated Current (Signal) 8A
Contact Resistance 30mOhm
Note Contacts Not Included
Durability 30 Cycles
Insertion Force-Max 4.8928 N
Contact Termination Crimp
Dimensions
Height 10.15mm
Length 25.5mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
