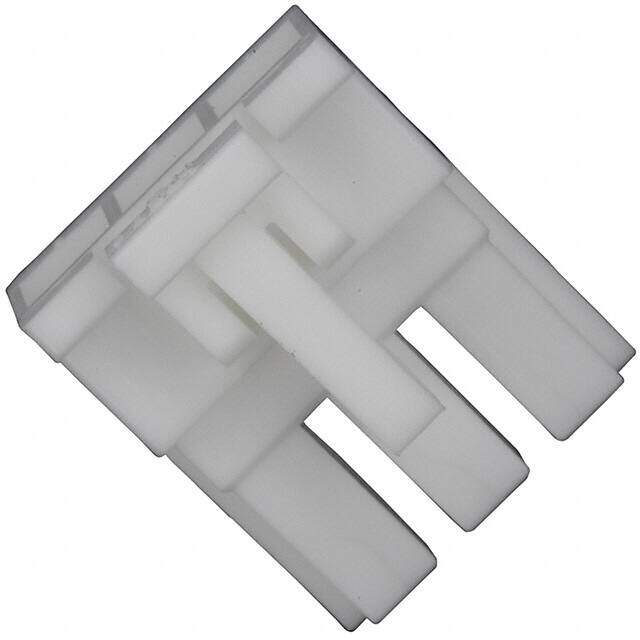

DF5A-3S-5C
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description
CONN RECEPT HOUSING 3POS 5MM
PDF
/
Buying Options
Total Price: USD $0.3
Unit Price: USD $0.2992
≥1 USD $0.2992
≥10 USD $0.25168
≥100 USD $0.222112
≥500 USD $0.203984
≥1000 USD $0.195976
≥3000 USD $0.175974
Inventory: 194
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Length 15.5mm
Height 10.15mm
Technical
Contact Termination Crimp
Insertion Force-Max 4.8928 N
Note Contacts Not Included
Rated Current (Signal) 8A
UL Flammability Code 94V-0
Contact Gender Female
Operating Temperature (Max) 85°C
Reliability COMMERCIAL
Reference Standard UL
Current Rating 8A
Orientation Straight
Total Number of Contacts 3
Pitch 0.197 5.00mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating TIN
Subcategory Headers and Edge Type Connectors
Fastening Type Latch Holder
Voltage - Rated 500V
Number of Rows 1
Color White
Number of Positions 3
Connector Type Receptacle
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series DF5
Published 2005
Packaging Bulk
Physical
Housing Material Polyamide
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Plating Tin
Contact Material Bronze
Supply Chain
Factory Lead Time 12 Weeks
