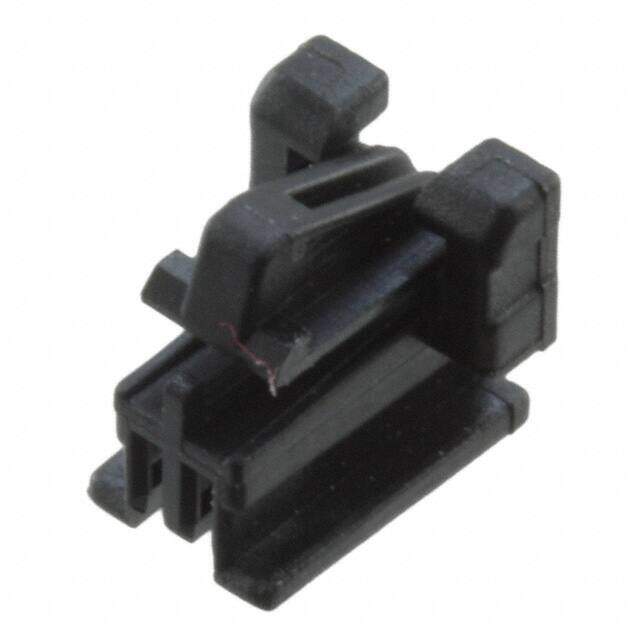

DF50A-2S-1C
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description
Headers & Wire Housings 2P 1.0MM PITCH CRIMP HOUSING
PDF
/
Buying Options
Total Price: USD $0.18
Unit Price: USD $0.176
≥1 USD $0.176
≥10 USD $0.15048
≥100 USD $0.133408
≥500 USD $0.124432
≥1000 USD $0.115544
≥3000 USD $0.102194
Inventory: 118
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC Unknown
Dimensions
Width 6.85mm
Length 3.95mm
Technical
Contact Termination Crimp
Durability 30 Cycles
Dielectric Withstanding Voltage 300VAC V
Note Contacts Not Included
Insulation Resistance 500MOhm
Contact Resistance 30mOhm
Rated Current (Signal) 1A
UL Flammability Code 94V-0
Contact Gender Female
Mating Information MULTIPLE MATING PARTS AVAILABLE
Reliability COMMERCIAL
Reference Standard UL
Current Rating 1A
Depth 6mm
Orientation Straight
Total Number of Contacts 2
Pitch 0.039 1.00mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating NOT SPECIFIED
Subcategory Headers and Edge Type Connectors
Fastening Type Latch Lock
HTS Code 8536.69.40.40
Voltage - Rated 100V
Gender Receptacle
Number of Rows 1
Color Black
Min Operating Temperature -35°C
Max Operating Temperature 85°C
Number of Positions 2
Connector Type Socket
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series DF50
Published 2006
Packaging Bulk
Physical
Housing Material PBT
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Supply Chain
Factory Lead Time 10 Weeks
