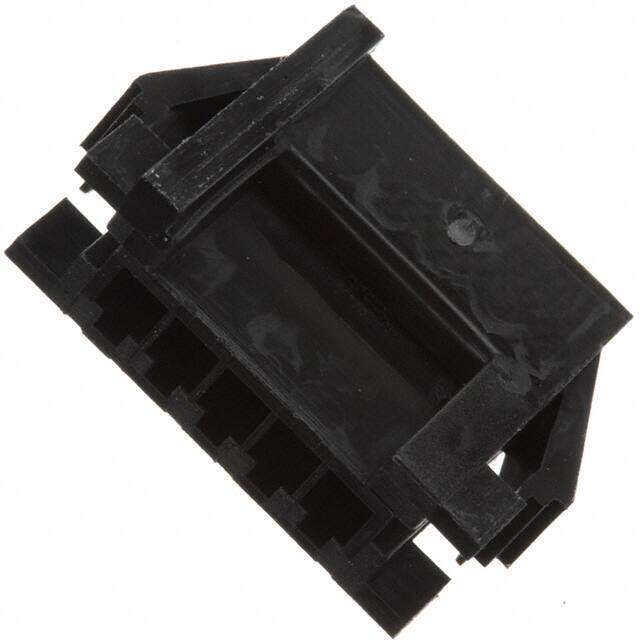

DF3AA-5EP-2C
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description
CONN PLUG HOUSING 5POS 2MM
PDF
/
Inventory: 2600
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Technical
Wire Size (Max) 22 AWG
Wire Size (Min) 28 AWG
Contact Termination Crimp
Insertion Force-Max 4.3924 N
Polarization Key HOUSING SIDE
Note Contacts Not Included
Body Depth 0.437 inch
UL Flammability Code 94V-0
Operating Temperature (Min) -30°C
Mating Information MULTIPLE MATING PARTS AVAILABLE
Lead Pitch 2mm
Body Length or Diameter 0.669 inch
Reliability COMMERCIAL
Reference Standard UL, CSA
Current Rating 3A
Reach Compliance Code unknown
Total Number of Contacts 5
Pitch 0.079 2.00mm
Option WITH CABLE ASSEMBLY
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating TIN
Subcategory Headers and Edge Type Connectors
Additional Feature PANEL MOUNTABLE
Voltage - Rated 250V
Number of Rows 1
Color Black
Number of Positions 5
Connector Type Plug
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series DF3
Published 2004
Packaging Bulk
Physical
Housing Material Polyamide
Mounting Type Panel Mount, Snap-In
Mount Panel, Snap in
Contact Material BRASS
Supply Chain
Factory Lead Time 10 Weeks
