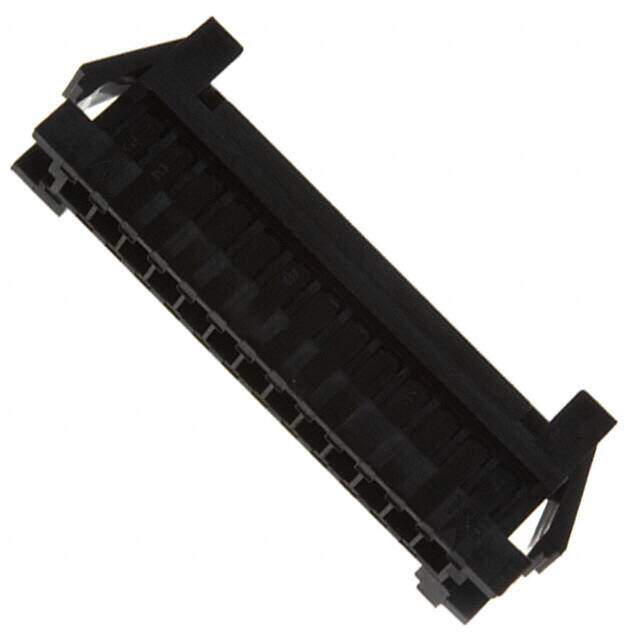

DF3AA-13EP-2C
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description
CONN PLUG HOUSING 13POS 2MM
PDF
/
Buying Options
Total Price: USD $0.49
Unit Price: USD $0.4928
≥1 USD $0.4928
≥10 USD $0.4312
≥100 USD $0.39424
≥500 USD $0.371184
≥1000 USD $0.355696
≥3000 USD $0.324782
Inventory: 114
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Technical
Wire Size (Max) 22 AWG
Wire Size (Min) 28 AWG
Contact Termination Crimp
Withdrawl Force-Min .3058 N
Insertion Force-Max 4.3924 N
Polarization Key HOUSING SIDE
Note Contacts Not Included
Body Depth 0.437 inch
UL Flammability Code 94V-0
Operating Temperature (Min) -30°C
Mating Information MULTIPLE MATING PARTS AVAILABLE
Operating Temperature (Max) 85°C
Lead Pitch 2mm
Reliability COMMERCIAL
Reference Standard UL, CSA
Current Rating 3A
Reach Compliance Code unknown
Total Number of Contacts 13
Pitch 0.079 2.00mm
Option WITH CABLE ASSEMBLY
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating TIN
Subcategory Headers and Edge Type Connectors
HTS Code 8536.69.40.40
Additional Feature PANEL MOUNTABLE
Voltage - Rated 250V
Number of Rows 1
Color Black
Number of Positions 13
Connector Type Plug
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series DF3
Published 2004
Packaging Bulk
Physical
Housing Material Polyamide
Mounting Type Panel Mount, Snap-In
Mount Panel, Snap in
Contact Material BRASS
Supply Chain
Factory Lead Time 10 Weeks
