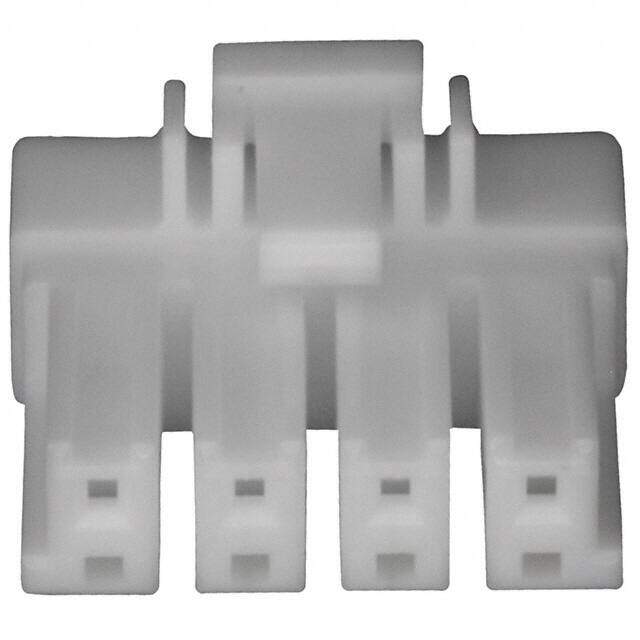

DF33-4S-3.3C
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description
CONN SOCKET HSG 4POS 3.3MM
PDF
/
Inventory: 6441
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Contact Material COPPER ALLOY
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide
Technical
Packaging Bulk
Series EnerBee? DF33
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Connector Type Receptacle
Number of Positions 4
Color Natural
Number of Rows 1
Gender Female
Additional Feature COMPATIBLE CONTACTS: DF33A-2022SCF; DF33A-2022SC
Fastening Type Latch Lock
Contact Finish - Mating TIN
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 0.130 3.30mm
Total Number of Contacts 4
Orientation Straight
Depth 14mm
Reach Compliance Code unknown
Mating Information MULTIPLE MATING PARTS AVAILABLE
Note Contacts Not Included
Contact Termination Crimp
Dimensions
Length 14.4mm
Width 7.4mm
Compliance
RoHS Status RoHS Compliant
