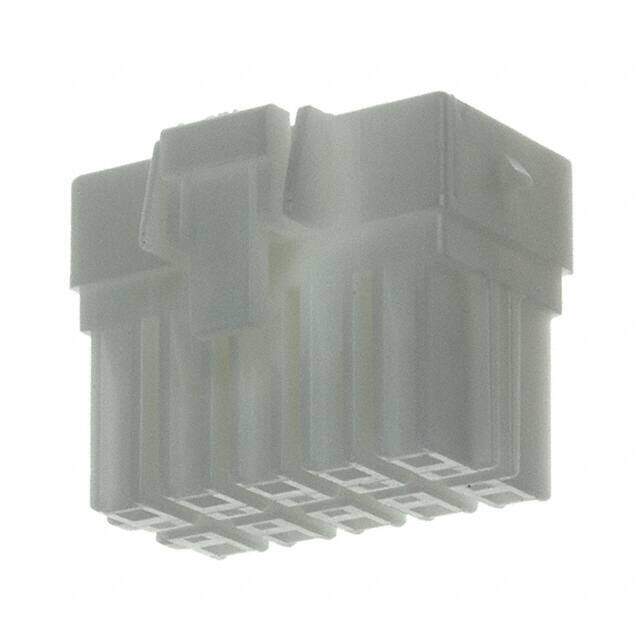

DF33-10DS-3.3C
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description
CONN SOCKET HSG 10POS 3.3MM DUAL
PDF
/
Inventory: 1404
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Contact Material COPPER ALLOY
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide
Technical
Packaging Bulk
Series EnerBee? DF33
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Connector Type Receptacle
Number of Positions 10
Color Natural
Number of Rows 2
Gender Female
Fastening Type Latch Lock
Contact Finish - Mating TIN
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 0.130 3.30mm
Total Number of Contacts 10
Orientation Straight
Depth 14mm
Reach Compliance Code unknown
Mating Information MULTIPLE MATING PARTS AVAILABLE
UL Flammability Code 94V-0
Row Spacing 0.228 (5.80mm)
Note Contacts Not Included
Contact Termination Crimp
Dimensions
Length 17.7mm
Width 12.2mm
Compliance
RoHS Status RoHS Compliant
