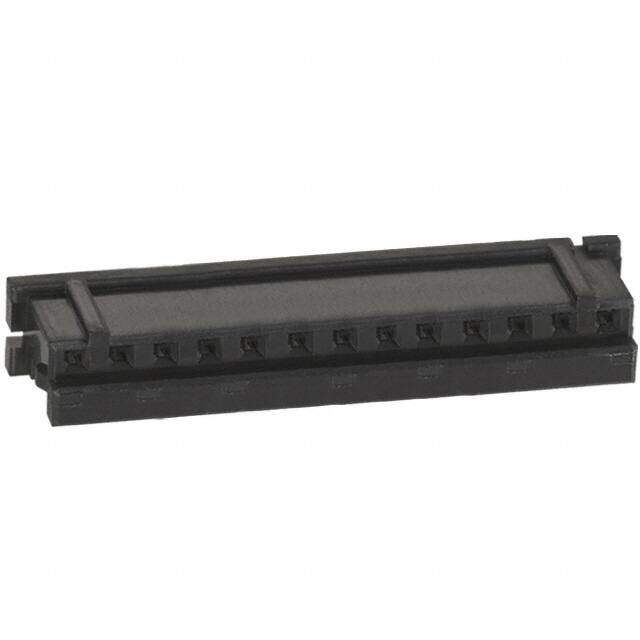

DF3-13S-2C
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description
CONN RECEPT HOUSING 13POS 2MM
PDF
/
Buying Options
Total Price: USD $0.2
Unit Price: USD $0.197678
≥1 USD $0.197678
≥10 USD $0.186495
≥100 USD $0.17594
≥500 USD $0.165979
≥1000 USD $0.156575
Inventory: 4938
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Width 4.6mm
Length 28mm
Technical
Contact Termination Crimp
Withdrawl Force-Min .3058 N
Insertion Force-Max 4.3924 N
Wire Gauge (Min) 22 AWG
Wire Gauge (Max) 28 AWG
Polarization Key HOUSING SIDE
Max Current Rating 3A
Max Voltage Rating (AC) 100V
Note Contacts Not Included
UL Flammability Code 94V-0
Mating Information MULTIPLE MATING PARTS AVAILABLE
Lead Pitch 2mm
Reliability COMMERCIAL
Reference Standard UL, CSA
Current Rating 3A
Depth 6.8mm
Orientation Straight
Total Number of Contacts 13
Pitch 0.079 2.00mm
Option WITH CABLE ASSEMBLY
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating TIN/GOLD
Subcategory Headers and Edge Type Connectors
Additional Feature LOW PROFILE
Voltage - Rated 100V
Gender Female
Number of Rows 1
Color Black
Min Operating Temperature -30°C
Max Operating Temperature 85°C
Number of Positions 13
Connector Type Receptacle
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3/e4
Series DF3
Published 2004
Packaging Bulk
Physical
Housing Material Polyamide
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Plating Gold, Tin
Contact Material PHOSPHOR BRONZE
Supply Chain
Factory Lead Time 10 Weeks
