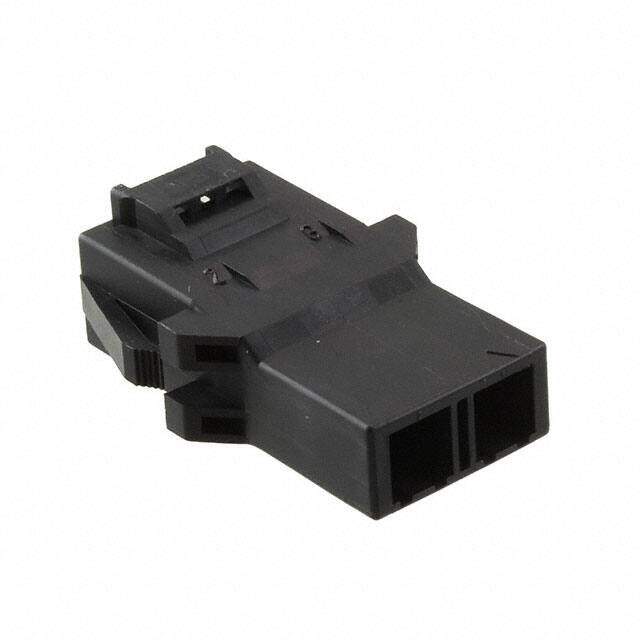

DF22R-2EP-7.92C
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description
Power to the Board 2 CONT IN LINE PLG RIGHT SDE
PDF
/
Buying Options
Total Price: USD $0.39
Unit Price: USD $0.392361
≥1 USD $0.392361
≥10 USD $0.370145
≥100 USD $0.349198
≥500 USD $0.329431
≥1000 USD $0.310781
Inventory: 993
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Contact Material COPPER ALLOY
Mount Panel
Mounting Type Panel Mount
Housing Material Polyamide
Technical
Packaging Bulk
Series EnerBee? DF22
JESD-609 Code e2
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Connector Type Plug
Number of Positions 2
Color Black
Number of Rows 1
Gender Male
Voltage - Rated 600V
Fastening Type Latch Holder
Contact Finish - Mating TIN COPPER
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 0.312 7.92mm
Total Number of Contacts 2
Current Rating 25A
Mating Information MULTIPLE MATING PARTS AVAILABLE
Contact Gender Female
UL Flammability Code 94V-0
Note Contacts Not Included
Wire Gauge (Max) 10 AWG
Wire Gauge (Min) 16 AWG
Contact Termination Crimp
Compliance
REACH SVHC Unknown
RoHS Status RoHS Compliant
