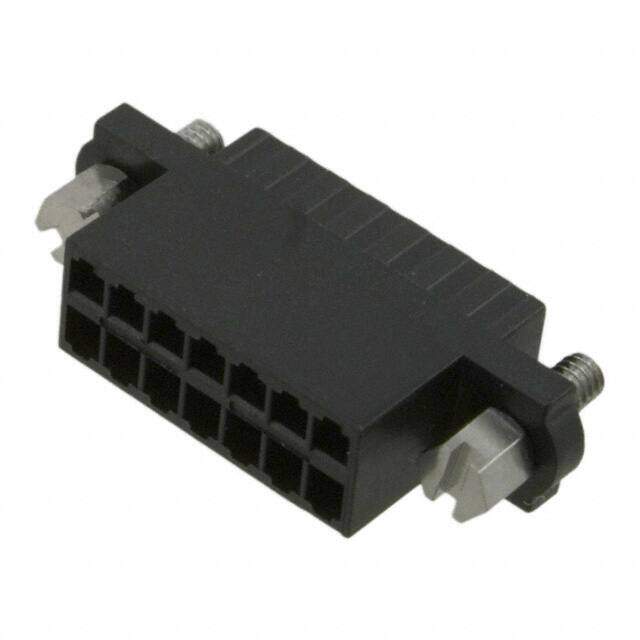

M80-4551498
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description
CONN RECEPT 2MM W/SCREW 14POS
PDF
/
Buying Options
Total Price: USD $13.92
Unit Price: USD $13.924617
≥1 USD $13.924617
≥200 USD $5.556193
≥500 USD $5.371074
≥1000 USD $5.279171
Inventory: 8221
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Length 24mm
Technical
Contact Termination Crimp
Durability 400 Cycles
Wire Gauge (Min) 28 AWG
Wire Gauge (Max) 22 AWG
Polarization Key POLARIZED HOUSING
Max Current Rating 3A
Max Voltage Rating (AC) 120V
Body/Shell Style PLUG
Note Contacts Not Included
Row Spacing 0.079 (2.00mm)
Insulation Resistance 100000000Ohm
Rated Current (Signal) 3A
Body Depth 0.437 inch
UL Flammability Code 94V-0
Contact Gender Male
Reliability COMMERCIAL
Reference Standard UL
Current Rating 3A
Orientation Straight
Total Number of Contacts 14
Pitch 0.079 2.00mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating NOT SPECIFIED
Subcategory Headers and Edge Type Connectors
Additional Feature ROHS COMPLIANT
Voltage - Rated 120V
Number of Rows 2
Color Black
Min Operating Temperature -55°C
Max Operating Temperature 125°C
Number of Positions 14
Connector Type Receptacle
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Jackscrews
Series Datamate Trio-Tek
Published 2009
Packaging Bulk
Physical
Housing Material Polyamide
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Plating Gold
Contact Material Bronze
Supply Chain
Factory Lead Time 13 Weeks
