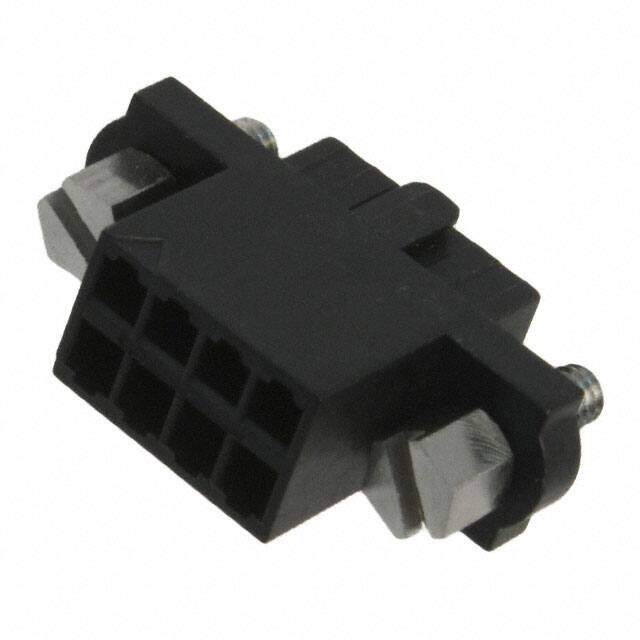

M80-4550898
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description
CONN RECEPT 2MM W/SCREW 8POS
PDF
/
Inventory: 7207
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Contact Material Bronze
Contact Plating Gold
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide
Technical
Packaging Bulk
Published 2008
Series Datamate Trio-Tek
Feature Jackscrews
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Receptacle
Number of Positions 8
Color Black
Number of Rows 2
Voltage - Rated 120V
Additional Feature ROHS COMPLIANT
Subcategory Headers and Edge Type Connectors
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 0.079 2.00mm
Total Number of Contacts 8
Orientation Straight
Current Rating 3A
Reference Standard UL
Voltage - Rated AC 120V
Reliability COMMERCIAL
Body Length or Diameter 0.709 inch
Contact Gender Male
Operating Temperature (Min) -55°C
UL Flammability Code 94V-0
Body Depth 0.437 inch
Rated Current (Signal) 3A
Contact Resistance 25mOhm
Insulation Resistance 100MOhm
Row Spacing 0.079 (2.00mm)
Note Contacts Not Included
Body/Shell Style PLUG
Polarization Key POLARIZED HOUSING
Wire Gauge (Max) 22 AWG
Wire Gauge (Min) 28 AWG
Durability 400 Cycles
Contact Termination Crimp
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
