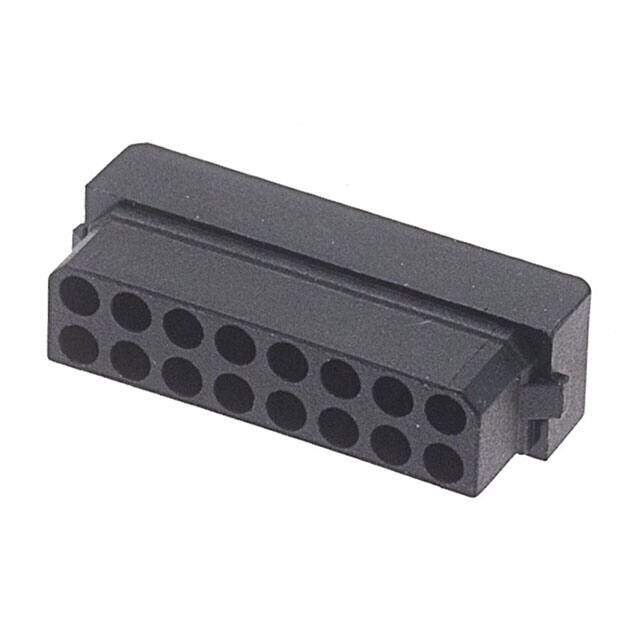

M80-1031698S image
Favorite
M80-1031698S image
Favorite

M80-1031698S

Harwin Inc.
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description CRIMP HOUSING, 2 ROW, 16WAY
PDF
/
Buying Options
Total Price: USD $2.54
Unit Price: USD $2.5432
≥1 USD $2.5432
≥10 USD $2.30648
≥100 USD $2.031832
≥500 USD $1.727035
≥1000 USD $1.47305
≥3000 USD $1.320669
Inventory: 356
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 9 Weeks

Physical

Mount Cable
Mounting Type Free Hanging (In-Line)
Material Glass, Thermoplastic
Housing Material PET

Technical

Packaging Bulk
Published 2006
Series Datamate L-Tek
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Connector Type Receptacle
Number of Positions 16
Color Black
Number of Rows 2
Additional Feature ROHS COMPLIANT
Fastening Type Latch Holder
Subcategory Headers and Edge Type Connectors
Voltage - Rated DC 120V
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 0.079 2.00mm
Total Number of Contacts 16
Orientation Straight
Depth 7.55mm
Current Rating 3.3A
Number of Conductors ONE
Reference Standard UL
Voltage - Rated AC 120V
Reliability COMMERCIAL
UL Flammability Code 94V-0
Working Voltage 120V
Insulation Resistance 100mOhm
Row Spacing 0.079 (2.00mm)
Note Contacts Not Included
Body/Shell Style PLUG
Contact Termination Crimp
Contact Design PREASSEM CONN

Dimensions

Length 18mm
Width 5.4mm

Compliance

Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
