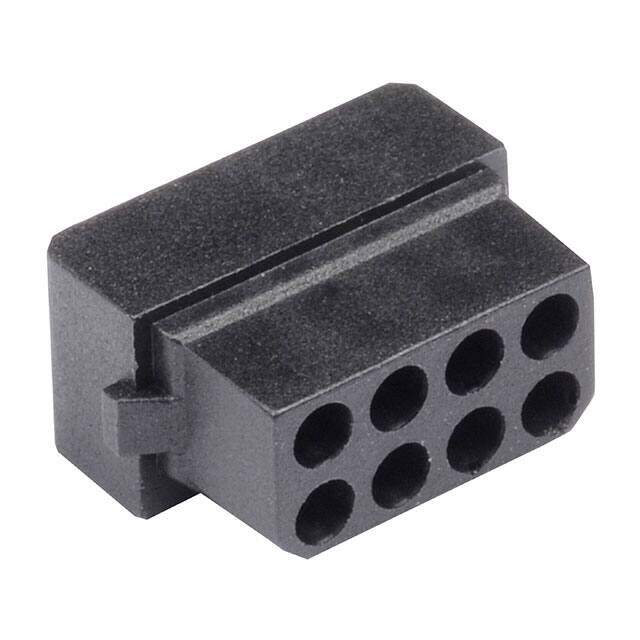

M80-1030898S
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description
Headers & Wire Housings 8P DATAMATE CRIMP DR MOULDING L-TEK
PDF
/
Buying Options
Total Price: USD $2.2
Unit Price: USD $2.2
≥1 USD $2.2
≥10 USD $1.91312
≥100 USD $1.709664
≥500 USD $1.424755
≥1000 USD $1.221211
≥3000 USD $1.082805
Inventory: 1302
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Width 5.4mm
Length 11mm
Technical
Contact Design PREASSEM CONN
Contact Termination Crimp
Body/Shell Style PLUG
Note Contacts Not Included
Row Spacing 0.079 (2.00mm)
Insulation Resistance 100mOhm
Working Voltage 120V
UL Flammability Code 94V-0
Reliability COMMERCIAL
Voltage - Rated AC 120V
Reference Standard UL
Number of Conductors ONE
Current Rating 3.3A
Depth 7.55mm
Orientation Straight
Total Number of Contacts 8
Pitch 0.079 2.00mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Voltage - Rated DC 120V
Subcategory Headers and Edge Type Connectors
Fastening Type Latch Holder
Additional Feature ROHS COMPLIANT
Number of Rows 2
Color Black
Number of Positions 8
Connector Type Receptacle
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
Series Datamate L-Tek
Published 2006
Packaging Bulk
Physical
Housing Material Polyester
Material Glass, Thermoplastic
Mounting Type Free Hanging (In-Line)
Mount Cable
Supply Chain
Factory Lead Time 9 Weeks
