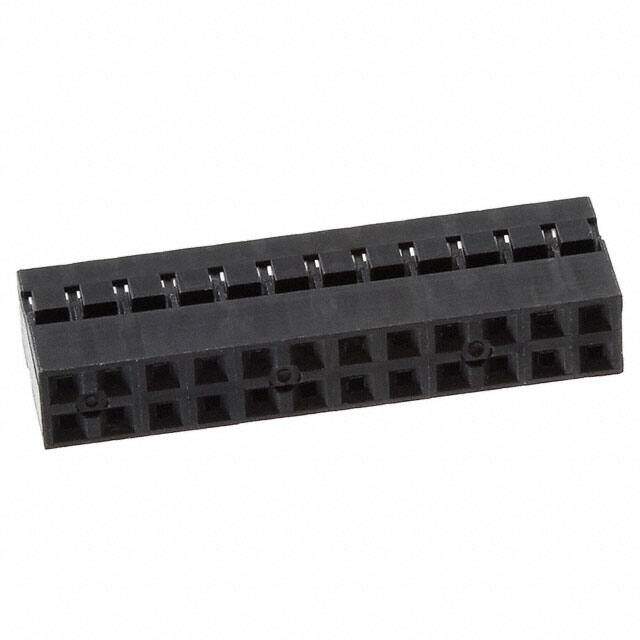

M22-3021200
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description
Headers & Wire Housings 12+12 DIL FEMALE HOUSING
PDF
/
Inventory: 4772
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Bronze
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Nylon
Technical
Packaging Bulk
Published 2005
Series M22
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Connector Type Receptacle
Number of Positions 24
Max Operating Temperature 105°C
Min Operating Temperature -40°C
Color Black
Number of Rows 2
Subcategory Headers and Edge Type Connectors
Voltage - Rated DC 250V
Contact Finish - Mating NOT SPECIFIED
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 0.079 2.00mm
Total Number of Contacts 24
Orientation Straight
Depth 7.1mm
Current Rating 1.5A
Reference Standard UL
Voltage - Rated AC 250V
Reliability COMMERCIAL
Mating Information MULTIPLE MATING PARTS AVAILABLE
Body Breadth 0.165 inch
Contact Gender Female
UL Flammability Code 94V-0
Rated Current (Signal) 2A
Insulation Resistance 10kOhm
Row Spacing 0.079 (2.00mm)
Note Contacts Not Included
Max Voltage Rating (AC) 250V
Max Current Rating 1A
Dielectric Withstanding Voltage 1500VAC V
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 24 AWG
Contact Termination Crimp
Dimensions
Length 24.2mm
Width 4.1mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
