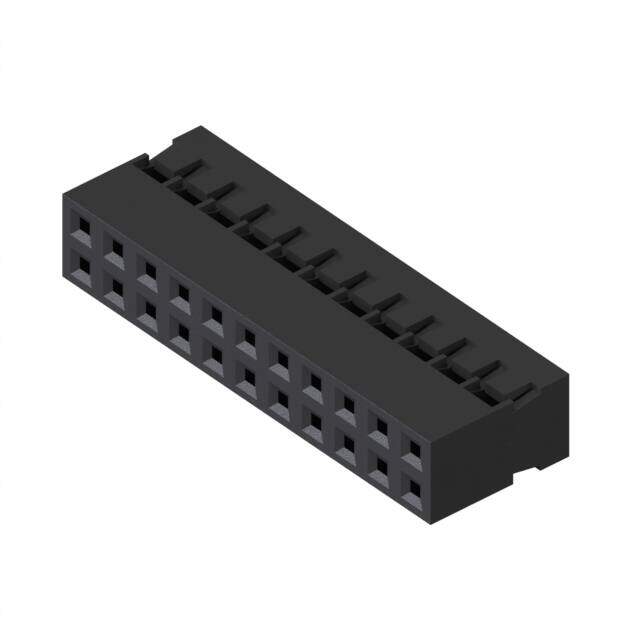

M22-3021100
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description
Headers & Wire Housings 11+11 DIL FEMALE HOUSING
PDF
/
Inventory: 9144
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Contact Termination Crimp
Dielectric Withstanding Voltage 1500VAC V
Note Contacts Not Included
Row Spacing 0.079 (2.00mm)
Insulation Resistance 5000000000Ohm
Rated Current (Signal) 2A
UL Flammability Code 94V-0
Operating Temperature (Min) -40°C
Contact Gender Female
Body Breadth 0.165 inch
Mating Information MULTIPLE MATING PARTS AVAILABLE
Operating Temperature (Max) 105°C
Body Length or Diameter 0.866 inch
Reliability COMMERCIAL
Reference Standard UL
Total Number of Contacts 22
Pitch 0.079 2.00mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating NOT SPECIFIED
Subcategory Headers and Edge Type Connectors
HTS Code 8536.69.40.40
Number of Rows 2
Color Black
Number of Positions 22
Connector Type Receptacle
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Series M22
Published 2012
Packaging Bulk
Physical
Insulation Material NYLON
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Material NOT SPECIFIED
