M22-3010700
RoHS
RoHS compliant
RoHS compliantPackage SIL
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description

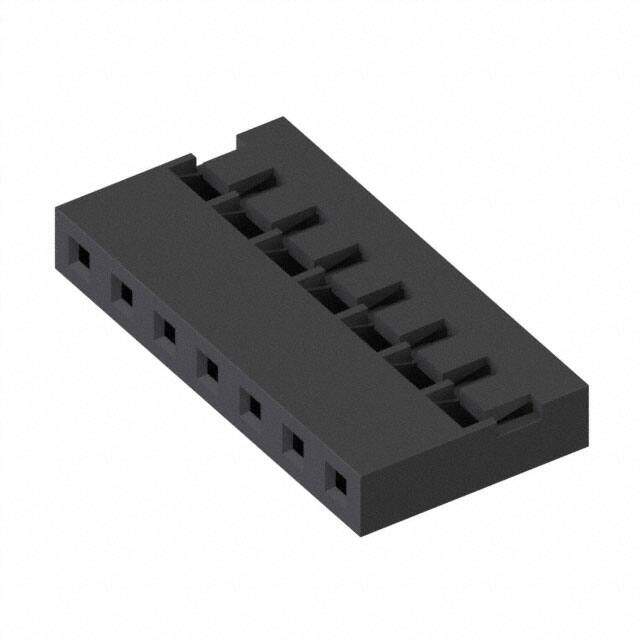

Headers & Wire Housings 7 PIN SIL FEMALE HOUSING
PDF
/
Buying Options
Total Price: USD $0.51
Unit Price: USD $0.5104
≥1 USD $0.5104
≥10 USD $0.44352
≥100 USD $0.405856
≥500 USD $0.381744
≥1000 USD $0.365904
≥3000 USD $0.334083
Inventory: 1998
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material NOT SPECIFIED
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Package / Case SIL
Insulation Material NYLON
Technical
Packaging Bulk
Published 2013
Series M22
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Connector Type Receptacle
Number of Positions 7
Color Black
Number of Rows 1
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating NOT SPECIFIED
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 0.079 2.00mm
Total Number of Contacts 7
Reference Standard UL
Reliability COMMERCIAL
Body Length or Diameter 0.563 inch
Operating Temperature (Max) 85°C
Mating Information MULTIPLE MATING PARTS AVAILABLE
Contact Gender Female
Operating Temperature (Min) -25°C
UL Flammability Code 94V-2
Body Depth 0.283 inch
Rated Current (Signal) 1A
Contact Resistance 20mOhm
Note Contacts Not Included
Dielectric Withstanding Voltage 800VAC V
Contact Termination Crimp
Compliance
RoHS Status ROHS3 Compliant
