565-003-000-410
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description

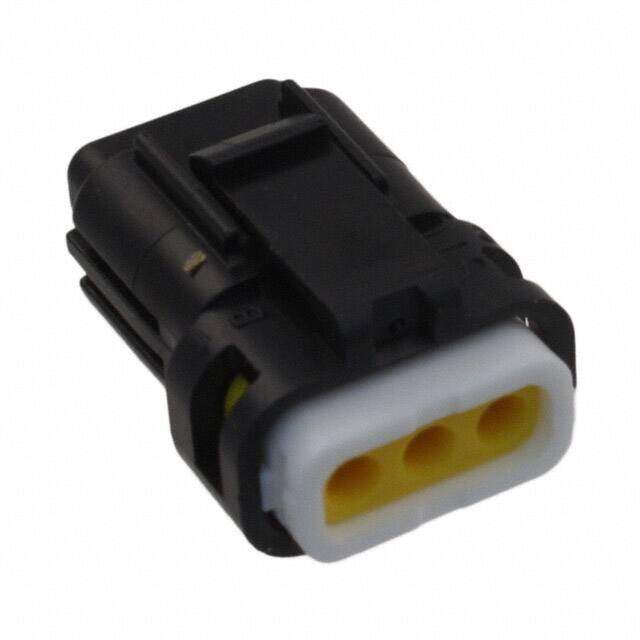

Pin & Socket Connectors 3WAY 3A RCPT (22-28) WATERPROOF HSNG BLK
PDF
/
Inventory: 8200
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Technical
Contact Termination Crimp
Wire Gauge (Min) 28 AWG
Wire Gauge (Max) 22 AWG
Max Current Rating 3A
Note Contacts Not Included
Contact Gender Female
Current Rating 3A
Orientation Straight
Pitch 0.098 2.50mm
Contact Type Female Socket
Fastening Type Latch Holder
Voltage - Rated 100V
Number of Rows 1
Color Black
Min Operating Temperature -40°C
Max Operating Temperature 105°C
Number of Positions 3
Connector Type Receptacle
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature Waterproof
Series 565
Published 2004
Packaging Bulk
Physical
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Plating Tin
Contact Material Bronze
