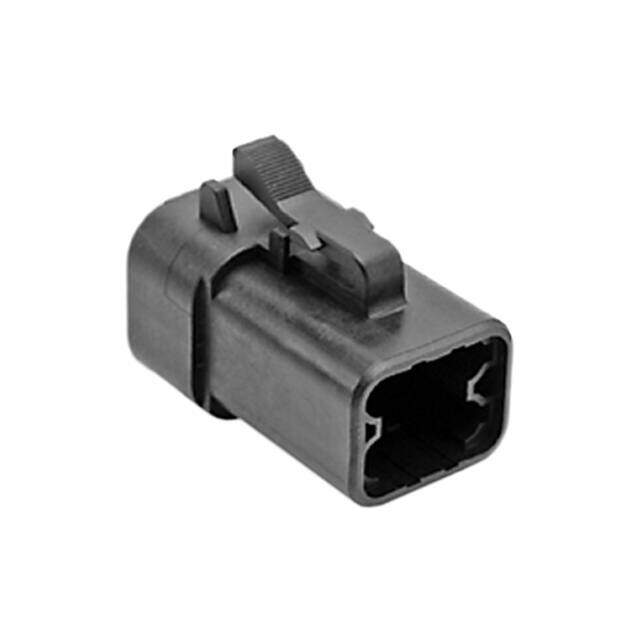

ATP06-4S-BLK
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description
Automotive Connectors ATP Series Plug 4 Way Black
PDF
/
Buying Options
Total Price: USD $2.26
Unit Price: USD $2.2616
≥1 USD $2.2616
≥10 USD $2.05656
≥100 USD $1.947968
≥500 USD $1.90256
≥1000 USD $1.81192
≥3000 USD $1.594982
Inventory: 575
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Contact Termination Crimp
Wire Gauge (Min) 10 AWG
Wire Gauge (Max) 14 AWG
Max Current Rating 25A
Note Contacts Not Included
Insulation Resistance 1Ohm
Housing Color Black
Number of Contacts 4
Current Rating 25A
Orientation Straight
Contact Type Female Socket
Fastening Type Latch Lock
Gender Female
Number of Rows 2
Color Black
Min Operating Temperature -55°C
Max Operating Temperature 125°C
Number of Positions 4
Connector Type Plug
Termination Crimp
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Sealed
Series ATP Series?
Published 2017
Packaging Bulk
Physical
Housing Material Thermoplastic
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Material Thermoplastic
Supply Chain
Factory Lead Time 12 Weeks
