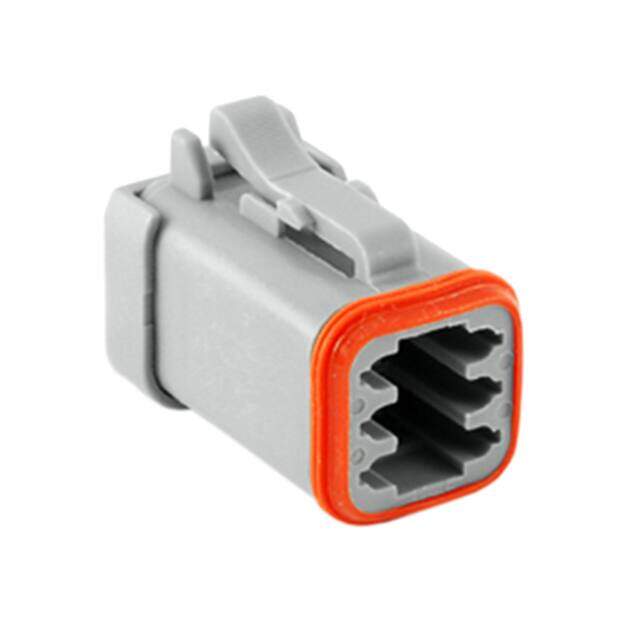

AT06-6S-MM01
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description
Automotive Connectors Plug 6 Way End Cap Reduced Dia. Seal
PDF
/
Buying Options
Total Price: USD $2.16
Unit Price: USD $2.156
≥1 USD $2.156
≥10 USD $1.87968
≥100 USD $1.799776
≥500 USD $1.759824
≥1000 USD $1.679832
≥3000 USD $1.519866
Inventory: 705
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Thermoplastic
Technical
Packaging Bulk
Published 2009
Series AT Series?
Feature Cap (Cover), Sealed
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Connector Type Plug
Number of Positions 6
Max Operating Temperature 125°C
Min Operating Temperature -55°C
Color Gray
Number of Rows 3
Gender Male
Fastening Type Latch Lock
Contact Type Female Socket
Orientation Straight
Depth 32.7mm
Housing Color Grey
Note Contacts Not Included
Max Current Rating 13A
Wire Gauge (Max) 20 AWG
Wire Gauge (Min) 14 AWG
Contact Termination Crimp
Dimensions
Length 20.7mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
