AT06-4S-RD01
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description

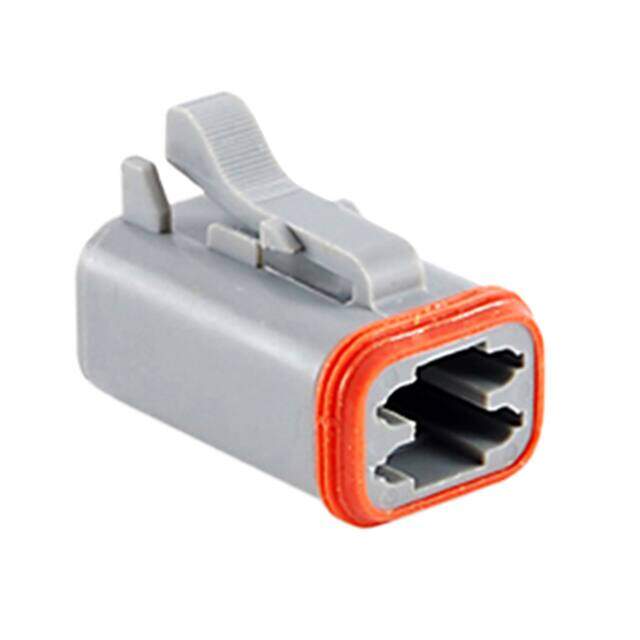

Automotive Connectors Plug 4 Way Reduced Diameter Seal
PDF
/
Buying Options
Total Price: USD $1.63
Unit Price: USD $1.628
≥1 USD $1.628
≥10 USD $1.42032
≥100 USD $1.359776
≥500 USD $1.32968
≥1000 USD $1.269224
≥3000 USD $1.14833
Inventory: 1908
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Radiation Hardening No
Technical
Contact Termination Crimp
Wire Gauge (Min) 14 AWG
Wire Gauge (Max) 20 AWG
Max Current Rating 13A
Note Contacts Not Included
Housing Color Grey
Depth 30.8mm
Orientation Straight
Contact Type Female Socket
Fastening Type Latch Lock
Gender Male
Number of Rows 2
Color Gray
Min Operating Temperature -55°C
Max Operating Temperature 125°C
Number of Positions 4
Connector Type Plug
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Sealed
Series AT Series?
Published 2009
Packaging Bulk
Physical
Housing Material Thermoplastic
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Supply Chain
Factory Lead Time 12 Weeks
