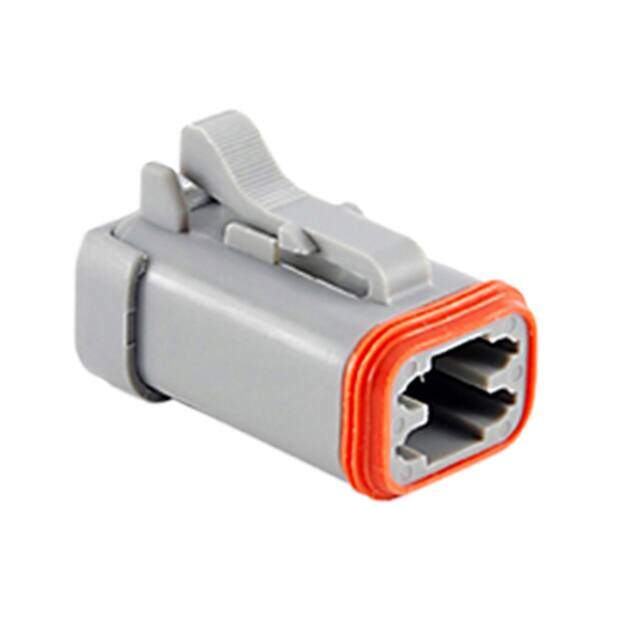

AT06-4S-EC01
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description
CONN PLUG 4POS 14-20AWG SIZE 16
PDF
/
Buying Options
Total Price: USD $1.89
Unit Price: USD $1.892
≥1 USD $1.892
≥10 USD $1.65
≥100 USD $1.579776
≥500 USD $1.544752
≥1000 USD $1.474528
≥3000 USD $1.33408
Inventory: 1132
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Thermoplastic
Technical
Packaging Bulk
Series AT Series?
Feature Cap (Cover)
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Plug
Number of Positions 4
Max Operating Temperature 125°C
Min Operating Temperature -55°C
Color Gray
Number of Rows 2
Gender Male
Fastening Type Latch Lock
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Total Number of Contacts 4
Orientation Straight
Housing Color Grey
Empty Shell NO
Note Contacts Not Included
Max Current Rating 13A
Number of Ports 1
Wire Gauge (Max) 20 AWG
Wire Gauge (Min) 14 AWG
Contact Termination Crimp
Dimensions
Length 20.6mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
